Fiber-Optic Detector, 1000-1650 nm Battery Biased InGaAs Detector, 15 GHz, FC/UPC

Technical Specs

  • Detector Material
    InGaAs
  • Detector Diameter
    0.032 mm
  • Detector Type
    PIN
  • Wavelength Range
    1000-1650 nm
  • 3 dB Bandwidth
    DC to 15 GHz

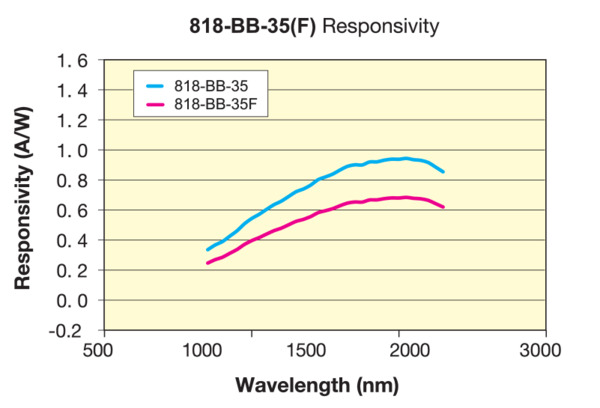

  • Responsivity
    0.88 A/W @ 1550 nm
  • Fiber-Optic Connector
    FC/UPC
  • Fiber Type
    Singlemode
  • Rise Time
    25 ps
  • NEP
    <0.04 pW/√Hz
  • Dark Current
    < 3 nA
  • Saturation Current
    10 mA
  • Reverse Breakdown
    25 V
  • Junction Capacitance
    <0.12 pF
  • Output Connector
    SMA
  • Bias Voltage
    6 V
  • Thread Type
    8-32 and M4
