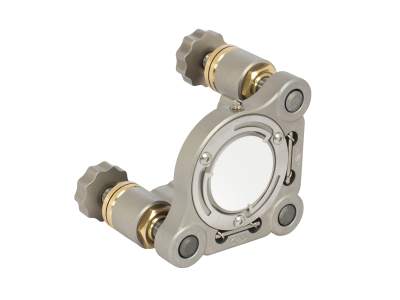

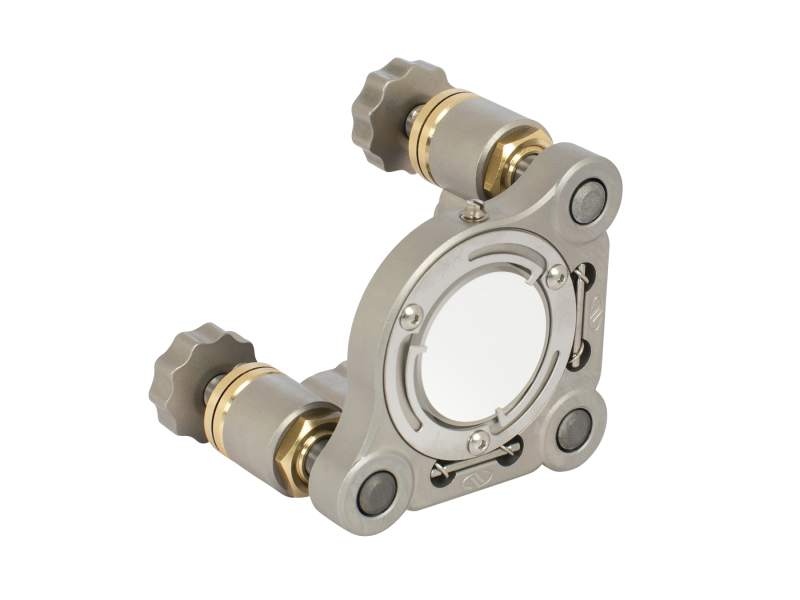

The SU100W-F2K-127 Low-Distortion Suprema® Mirror Mount offers the combination of low optical distortion and outstanding long-term stability. Each mount has a unique low-stress faceplate to mount the optic. This mounting feature reduces wave front distortion by over 70% compared to standard set screw retained optics. All Suprema mirror mounts have stainless steel bodies and precision carbide kinematic pads to ensure low thermal drift making them ideal for applications in laser instruments and research. Through our patented process we create cost-effective pressed and sintered powdered stainless steel mounts with performance comparable to that of wrought stainless steel. Newport's SU100W design has been optimized utilizing our broad experience in opto-mechanics, vibration damping and isolation, optics, and material science. Through comprehensive design, finite element analysis, and rigorous testing, we have achieved performance previously attained only through high cost, custom stainless steel mounts. 1 inch (25.4 mm) diameter optics are front loaded SU100W mounts have superior adjustability and feel. Polished and lapped carbide pads enable smooth, repeatable motion. This two-actuator configuration with 127 TPI locking Adjustment Screws with knob has tip and tilt adjustability over a range of +/- 7 degrees. Convenient 8-32 (M4) counterbored clearance holes provide quick, precise, secure and stable mounting. Suprema mounts are compatible with standard post and post holder systems for adjustable height and pedestal posts for a stable fixed height.
LH-1R05Lens Adaptor, 1.0 in. Mount to 0.5 in. Diameter Lens, A-LINE
UNIVERSAL
In Stock
$20
10Z40ER.2Silver Mirror, Zerodur, 25.4 mm, λ/20, 480-20,000 nm
UNIVERSAL
In Stock
$219
UPA-SMAFiber Adaptor, SMA, 25.4 mm Diameter, 5.1 mm Thick
UNIVERSAL
In Stock
$43
SU100W-F2K-127 - Drawings & CAD
Additional CAD file downloads are not available for this product.
SU100W-F2K-127 - Drawings
Additional drawings are not available for this product.
