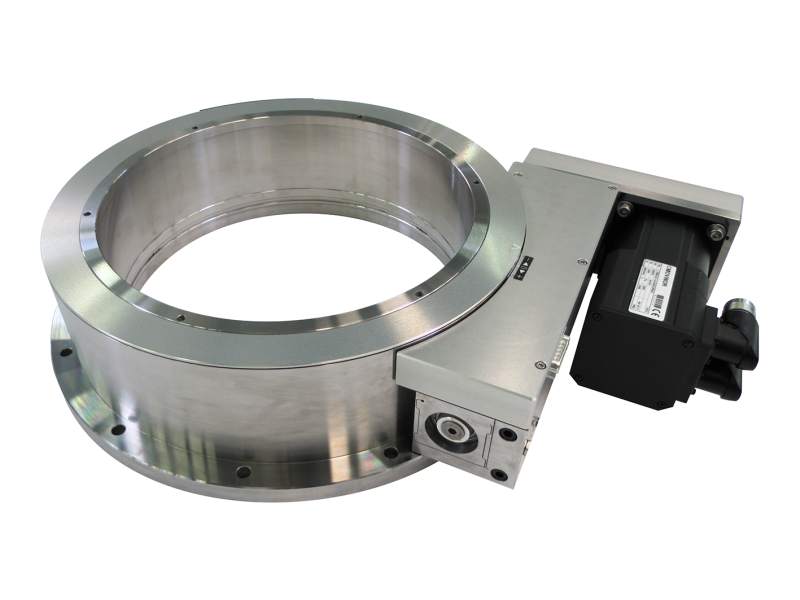

Motorized Rotation Stage, 120 mm, High-Speed DC Drive, Folded
Motorized Rotation Stage, 120 mm, High-Speed DC Drive, Folded
Model: RV120CC-F
8 Weeks
Product Series Overview
RV Folded DC Motor Rotation StagesThe RV120CC-F Folded High Speed Rotation Stage provides high-precision angular positioning accuracy combined with high load capacity. This 120 mm diameter stage features a high speed DC drive enabling speeds up to 80°/s. All RV stages are constructed of tool steel, with rotation accuracy ensured by ground bearing surfaces. A double row of preloaded bearings allows for high off-center loads in a reduced footprint. The single monolithic design offers improved stiffness without compromising dynamic performance. Precise rotation is ensured by a precision ground and hardened worm gear. A rotary encoder mounted on the worm gear shaft provides 0.001° position feedback resolution.
Specifications
- Angular Range360°
- Maximum Speed80°/s
- Minimum Incremental Motion1.0 mdeg
- Maximum Torque10 N·m
- Centered Load Capacity1800 N
- Uni-directional Repeatability, Typical±0.35 mdeg
- Uni-directional Repeatability, Guaranteed±1.0 mdeg
- Bi-directional Repeatability, Typical±0.7 mdeg
- Bi-directional Repeatability, Guaranteed±2.0 mdeg
- Accuracy, Typical±4.0 mdeg
- Accuracy, Guaranteed±7.5 mdeg
- Wobble, Typical±5.0 µrad
- Wobble, Guaranteed±10 µrad
- Eccentricity, Typical±0.6 µm
- Eccentricity, Guaranteed±2.0 µm
- Inertia0.2 kg.m2
- Transversal Compliance1.5 µrad/N·m
- OriginOptical, centered
- Origin Repeatability±0.5 mdeg
- Limit SwitchesOptical, at ± 170, can be disabled for continuous rotation (except HAT & HAHLT versions)
- Encoder Resolution0.001°
- MTBF20,000 h (25% load, 10% duty cycle)
- Cable Length3 m
- Diameter120 mm
- Aperture Diameter78 mm
- Connector TypeDB25 Male
- Thread TypeM4
- Weight6.5 kg
- ComplianceRoHS 3, CE
Resources & Downloads
Manuals
RV - User's Manual.pdf(2.5 MB, PDF)
Related Products
Compatible Controllers and Drivers
Based on axis required, choose a specific controller to pair with the stage. For XPS-D or XPS-RLD, a driver module is required. Spindle mode is only available with XPS controllers.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver1XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver | |||||
 | XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver2XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver | |||||
 | ESP302 3-Axis DC and Stepper Motion Controller3ESP302 3-Axis DC and Stepper Motion Controller |
Notes:
- Requires XPS-DRV11 driver module
- Requires XPS-DRV11 driver module
- Plug and play compatible with ESP302 controller
