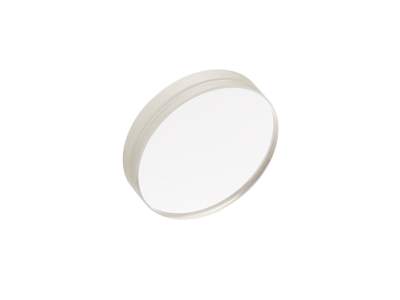

Achromatic Doublet Lens, Visible, 12.7 mm, 50.8 mm EFL, 400-700 nm

Technical Specs

  • Lens Type
    Achromatic Doublet
  • Lens Shape
    Plano-Convex
  • Diameter
    12.7 mm
  • Antireflection Coating
    400-700 nm
  • Damage Threshold
    750 W/cm2 CW, 0.75 J/cm2 with 10 nsec pulses, typical, cement limitation
  • Transmission
    T>95% visible, T>92% at 1064 nm
  • Lens Material
    N-BK7/N-SF5
  • Surface Quality
    40-20 scratch-dig
  • Surface Flatness
    λ/4
  • Surface Accuracy, Power
    1.5 λ
  • Effective Focal Length (EFL)
    50.8 mm
  • Back Focal Length (BFL)
    48.8 mm
  • F/#
    4
  • Radius of Curvature (R)
    30.856 mm
  • Radius 2
    -22.713 mm
  • Radius 3
    -67.617 mm
  • Edge Thickness (Te)
    3.5 mm
  • Center Thickness (Tc)
    4.5 mm
  • Thickness, Center 1
    3.0 mm
  • Thickness, Center 2
    1.5 mm
  • Orientation
    Steepest convex surface should face the infinite conjugate
  • Design Wavelengths
    589 nm
  • Centration
    ≤3 arc min
  • Diameter Tolerance
    +0/-0.1 mm
  • Focal Length Tolerance
    ±2.0%
  • Center Thickness Tolerance
    ±0.2 mm
