Optics Cage Plus Segment, Preassembled, 8 in, Length

Model: OC1-SEG8

$118

In Stock

Compare

Add to List

Product Series Overview

Optics Cage Plus Preassembled Segments

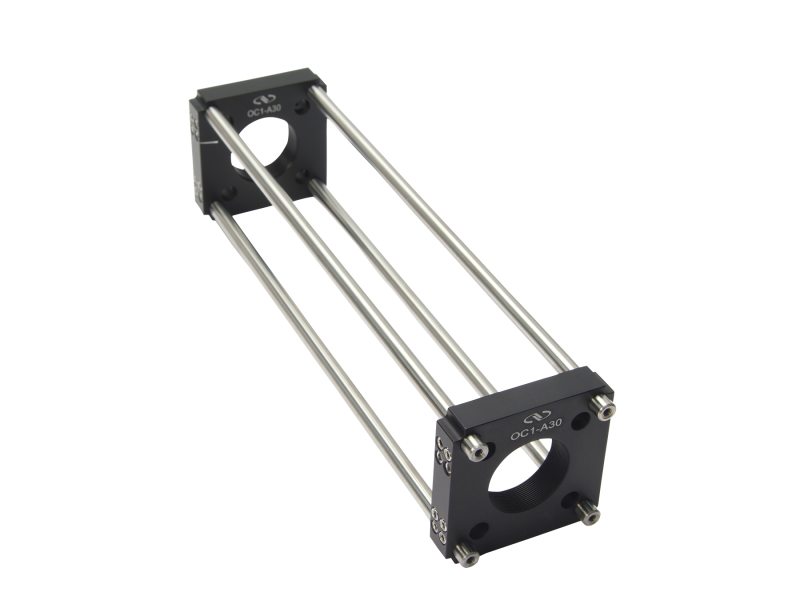

The OC1-SEG8 Optics Cage Plus Segment is a preassembled, 8 inch long OpticsCage+™ segment made from four OC1-GR-8 guide rods and two OC1-A30 end plates. The unique snap-in feature of the OpticsCage+ carriers allows this cage segment to be easily populated with optical elements to create an optical system. The rods in the end plates are staggered to create male/female ends to allow connection to other assembled OpticsCage+™ segments.

Specifications

Technical Specs

Type

Cage Segment
Length

203.2 mm

Type

Cage Segment
Length

203.2 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

OC1-CM-337 (109.6 kB, PDF)
OC1-SEG.pdf (259.7 kB, PDF)

Other

OC1-SEG8 RoHS Certificate (278.9 kB, PDF)
OC1-SEG8_RoHS2021.pdf (683 kB, PDF)

Related Products

Accessory Products

Description	Compatibility	Avail.	Price
PX-2 Optical Post, Slotted Base, 2.0 in. Height, 1.0 in. Diameter, 8-32	IMPERIAL	In Stock	$35
PX-3F Optical Pedestal, Forkless Mounting, 3 in. Height, 1 in. Diameter, 8-32	IMPERIAL	In Stock	$39
PX-4 Optical Post, Slotted Base, 4.0 in. Height, 1.0 in. Diameter, 8-32	IMPERIAL	In Stock	$46
M-PX-2 Optical Post, Slotted Base, 50.8 mm Height, 25.4 mm Diameter, M4	METRIC	In Stock	$35
M-PX-3F Optical Pedestal, Forkless Mounting, 76.2 mm Height, 25.4 mm Diameter, M4	METRIC	In Stock	$39
M-PX-4 Optical Post, Slotted Base, 101.6 mm Height, 25.4 mm Diameter, M4	METRIC	In Stock	$46

Similar Products

Description	Compatibility	Avail.	Price
OC1-SEG12 Optics Cage Plus Segment, Preassembled, 12 in, Length	UNIVERSAL	In Stock	$146
OC1-SEG8 Optics Cage Plus Segment, Preassembled, 8 in, Length	UNIVERSAL	In Stock	$118
OC1-SEG6 Optics Cage Plus Segment, Preassembled, 6 in, Length	UNIVERSAL	In Stock	$101
OC1-SEG4 Optics Cage Plus Segment, Preassembled, 4 in, Length	UNIVERSAL	In Stock	$93

Compatible Products

Description	Compatibility	Avail.	Price
OC1-LH1 Lens Mount, Insertable, 1 in. Diameter, Optics Cage Plus	UNIVERSAL	Show	$23
OC1-LH1-XY Adjustable Lens Mount, Insertable, XY Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus	UNIVERSAL	In Stock	$236
OC1-LH1-XYZ Adjustable Lens Mount, Insertable, XYZ Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus	UNIVERSAL	In Stock	$420
OC1-LH1-XYA Adjustable Lens Mount, Insertable, XYθXθY Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus	UNIVERSAL	In Stock	$277
OC1-TZ Z-Axis Stage, Insertable, 13 mm Travel, Locking, Optics Cage Plus	UNIVERSAL	In Stock	$536
OC1-PM Optical Post Mount, 1 in. Optics Cage Plus	UNIVERSAL	In Stock	$19.40
