Optics Cage Plus Segment, Preassembled, 4 in, Length
Optics Cage Plus Segment, Preassembled, 4 in, Length
Model: OC1-SEG4
In Stock
Product Series Overview

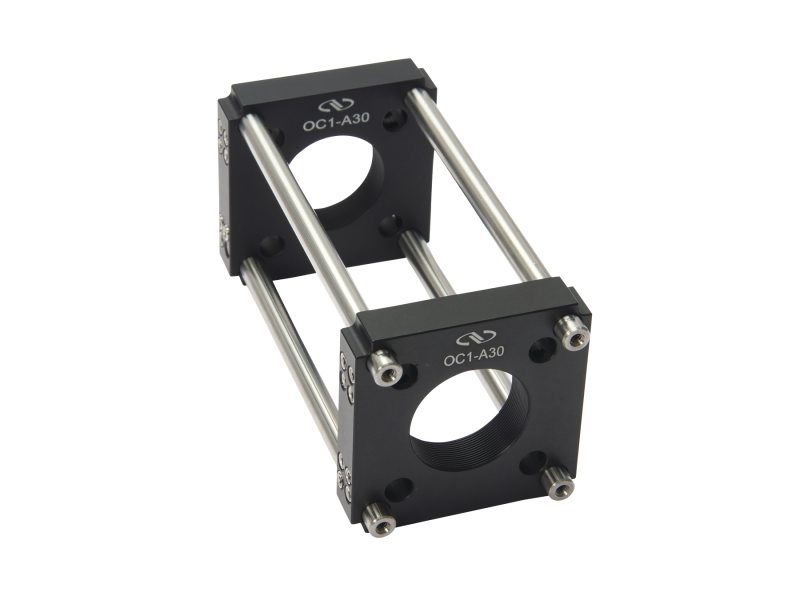

Optics Cage Plus Preassembled SegmentsThe OC1-SEG4 Optics Cage Plus Segment is a preassembled, 4 inch long OpticsCage+™ segment made from four OC1-GR-4 guide rods and two OC1-A30 end plates. The unique snap-in feature of the OpticsCage+ carriers allows this cage segment to be easily populated with optical elements to create an optical system. The rods in the end plates are staggered to create male/female ends to allow connection to other assembled OpticsCage+™ segments.
Resources & Downloads
2D Product Drawings
OC1-CM-337(109.6 kB, PDF) OC1-SEG.pdf(259.7 kB, PDF)
Other
OC1-SEG4 RoHS Certificate(278.7 kB, PDF) OC1-SEG4_RoHS2021.pdf(682.7 kB, PDF)
