V-Groove Mount, M1, 2 Knob Actuators

Model: M1-VG

$152

In Stock

Compare

Add to List

Product Series Overview

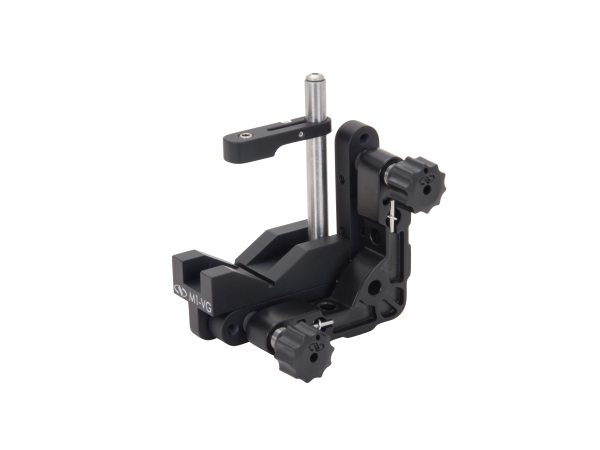

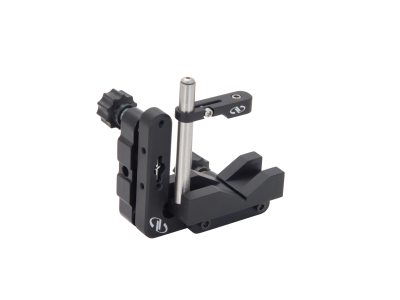

M Series Kinematic V-Groove Mount

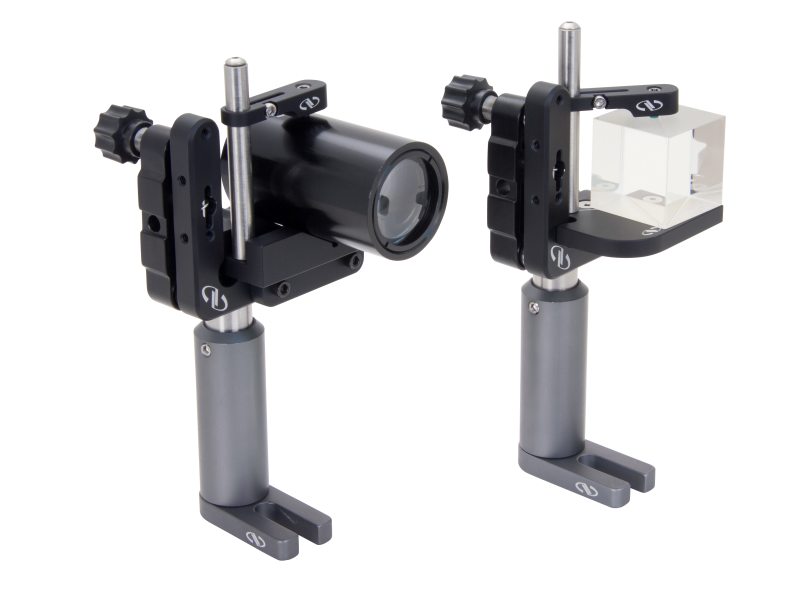

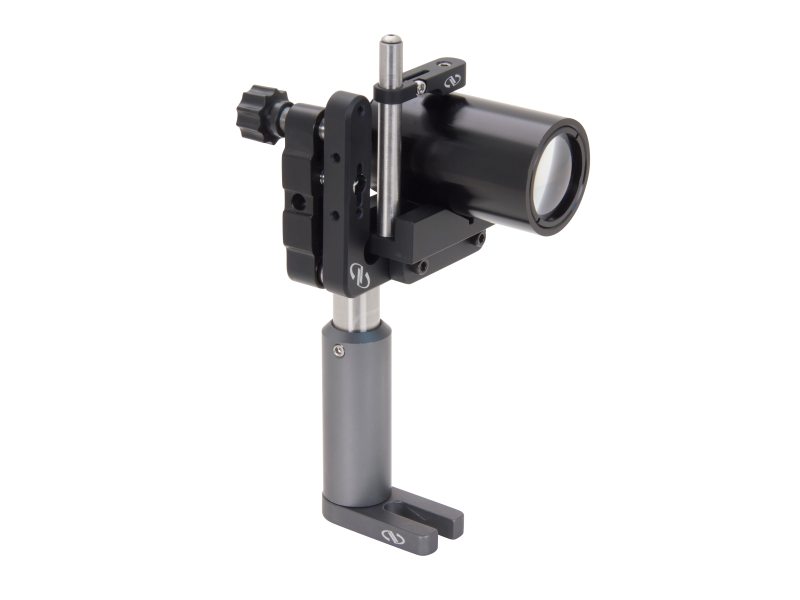

The M1-VG V-Groove mounts are ideal for mounting cylindrical objects like lens tubes. The M1-VG has a large Vie platform for holding cylindrical objects from 0.25 in. (6.4 mm) to 1.5 in (38.1 mm) in diameter. The M1-VG is configurable for right- or left-handed operations. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment.

Specifications

Technical Specs

Mechanism

Kinematic
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec
Angular Range

±4°

Material

Coated Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Special Features

V-Groove Mount

Mechanism

Kinematic
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec
Angular Range

±4°

Material

Coated Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Special Features

V-Groove Mount

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

M1-VG-354 (163.7 kB, PDF)

Other

M1-VG RoHS Certificate (278.1 kB, PDF)
