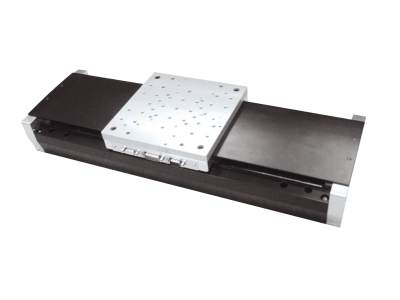

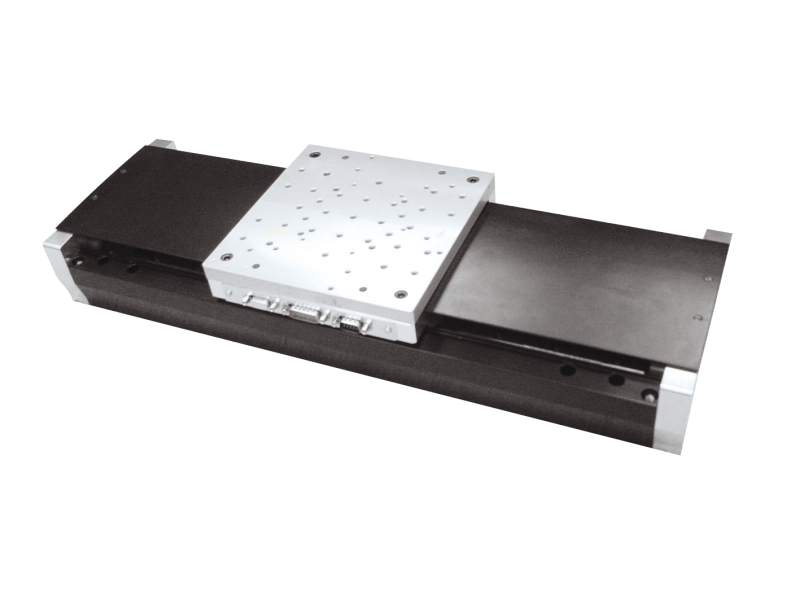

Motorized Linear Stage, Linear Motor, 300 mm Travel, XPS-D/RL, No Cable, M6

Technical Specs

  • Travel Range
    300 mm
  • Maximum Speed
    1000 mm/s with XPS-EDBL
    500 mm/sec with XPS-DRV11 / XPS-DRV02
  • Minimum Incremental Motion
    20 nm
  • Continuous Motor Force
    100 N
  • Peak Motor Force
    210 N
  • Centered Load Capacity
    600 N
  • Accuracy, Typical
    ±1.7 µm
  • Accuracy, Guaranteed
    ±4.5 µm
  • Bi-directional Repeatability, Typical
    ±0.08 µm
  • Bi-directional Repeatability, Guaranteed
    ±0.25 µm
  • Pitch, Typical
    ±37 µrad
  • Pitch, Guaranteed
    ±75 µrad
  • Compliance in Pitch
    0.2 µrad/N·m
  • Yaw, Typical
    ±25 µrad
  • Yaw, Guaranteed
    ±50 µrad
  • Compliance in Yaw
    1 µrad/N·m
  • Compliance in Roll
    1 µrad/N·m
  • Drive Type
    Linear Motor
  • Origin Repeatability
    ±0.05 µm
  • Thread Type
    M6
  • Weight
    17 kg
  • MTBF
    20,000 h (25% load, 30% duty cycle)
  • RoHS
    Compliant
  • Travel Requirement
    50 to 500 mm
  • MIM Requirement
    Less than 100 nm
  • Speed Requirement
    More than 250 mm/s
  • Load Capacity Requirement
    More than 500 N
