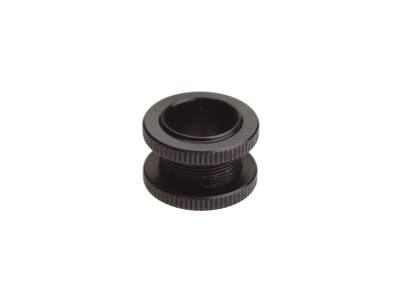

Lens Tube Coupler, 0.5 in Lens Tubes, 0.535-40 External Thread
Lens Tube Coupler, 0.5 in Lens Tubes, 0.535-40 External Thread
Model: LT05-LX
Product Series Overview
Lens Tube AdaptersThe LT05-LX Tube Coupler is used to provide a connection between two like sides of a 1/2 inch LT Series lens tube. The -LX Coupler provides a connection between two internally threaded sides of a lens tube. Additionally, the -LX Coupler is provided with two lock nuts allowing short-range focusing between two lens tubes.
Resources & Downloads
Other
LT05-LX RoHS Certificate(279.2 kB, PDF) LT05-LX_RoHS2021.pdf(682.7 kB, PDF)
2D Product Drawings
LTXX-LX-DWG-TABLE.pdf(224.7 kB, PDF)
