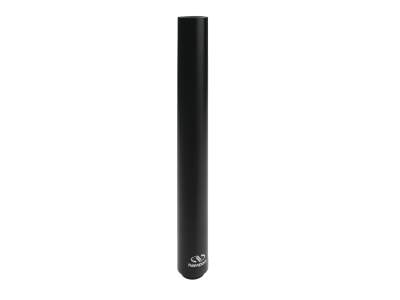

LT05-EX Extension

The LT05-EX Extension Tube is used for optical systems with longer focal lengths. Made in a 6 inch length, this extension tube has all the same features as standard 1/2 inch LT Series lens tubes except that the depth of the internal threads is only 1 inch. A lens retaining ring is included with each of these Extension Tubes.

Specifications

Technical Specs

Type
Accessory
Optic Diameter
12.7 mm
Use
0.5 in. Lens Tubes
Adjustments
Fixed

Thread Type
0.535-40
Length
155.4 mm

Type
Accessory
Optic Diameter
12.7 mm
Use
0.5 in. Lens Tubes
Adjustments
Fixed

Thread Type
0.535-40
Length
155.4 mm

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

LTXX-EX_DWG(89.2 kB, PDF)

Other

LT05-EX RoHS Certificate(279.5 kB, PDF)
LT05-EX_RoHS2021.pdf(684.7 kB, PDF)
