Motorized Linear Stage, Linear Motor, 1200 mm Travel, 1/4-20, No Cable
Model: IMS1200LM-S
Product Series Overview

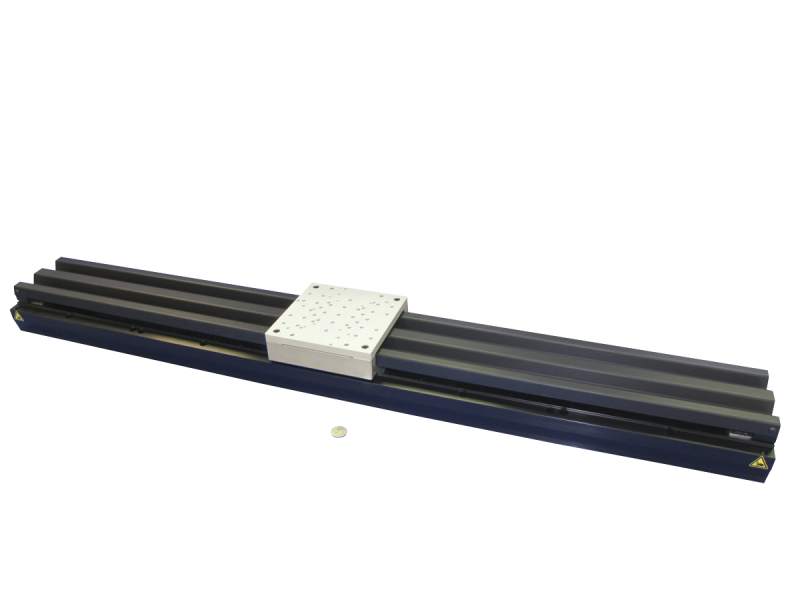

IMS-LM 600 N Load Aluminum Linear Motor StagesThe IMS1200LM-S Linear Stage is designed for self-supporting applications with a 1200 mm travel range. The stage features a robust design and high performance at low cost, making it a cost-effective solution for precision industrial and laboratory applications. The IMS utilizes an FEM-optimized extruded aluminum body to avoid bending effects or deflection under load. The linear motor employs a centered, high efficiency 3-phase synchronous iron core, linear motor as driving element, providing high speed, high acceleration and high system responsiveness. The IMS series stages are ideal for many precision industrial applications such as semiconductor wafer inspection, micro-electronics test and assembly, DNA sequencing or laser machining.
Associated driver module and cable kit is required and must be purchased separately
(see Accessories section below).
Resources & Downloads
Application Notes
Manuals
IMSLMC2 Cable Track Kit Assembly Instructions(149.6 kB, PDF) Cable Kits User's Manual.pdf(1.9 MB, PDF) IMS-LM-S User's Manual.pdf(2.2 MB, PDF)
2D Product Drawings
IMS1200LM(223 kB, PDF)
Literature
Mini Laser Machining Brochure 2016(1.4 MB, PDF) IMS-LM-S Data Sheet.pdf(1.9 MB, PDF) Laser Machining Brochure 2018(3.4 MB, PDF)
Technical Notes
Methods to Determine Optimized Scaling Acceleration(3.4 MB, PDF)
Related Products
Compatible controllers
Along with the controller, a driver module and a cable kit are required. See the three options below.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | xps-d-universal-motion-controllerXPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver | |||||
 | xps-rl-universal-high-performance-motion-controllerXPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver |
Universal XPS-DRV11 driver
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | XPS-DRV11Motion Controller Card, Universal, Stepper, DC, and Linear Motors | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

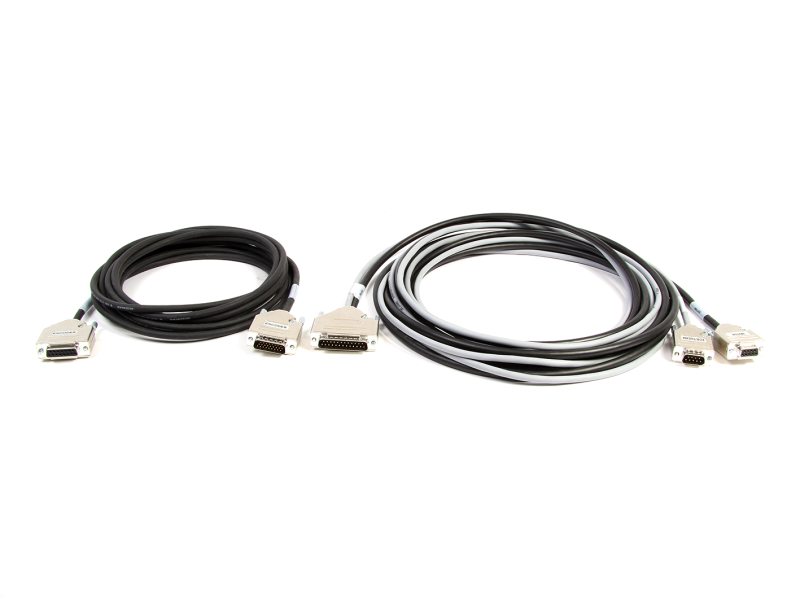

 | XPS-DK22Cable Kit, For Stages IMS-LM-S, XM-S, and XPS-DRV11 Driver |
