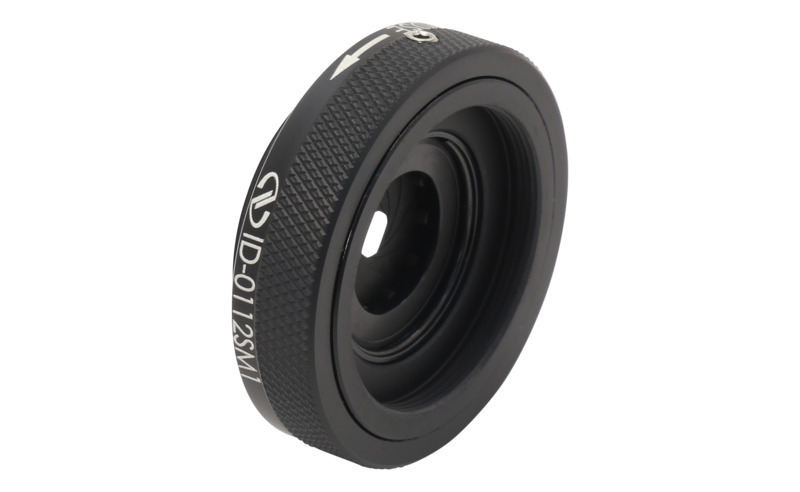

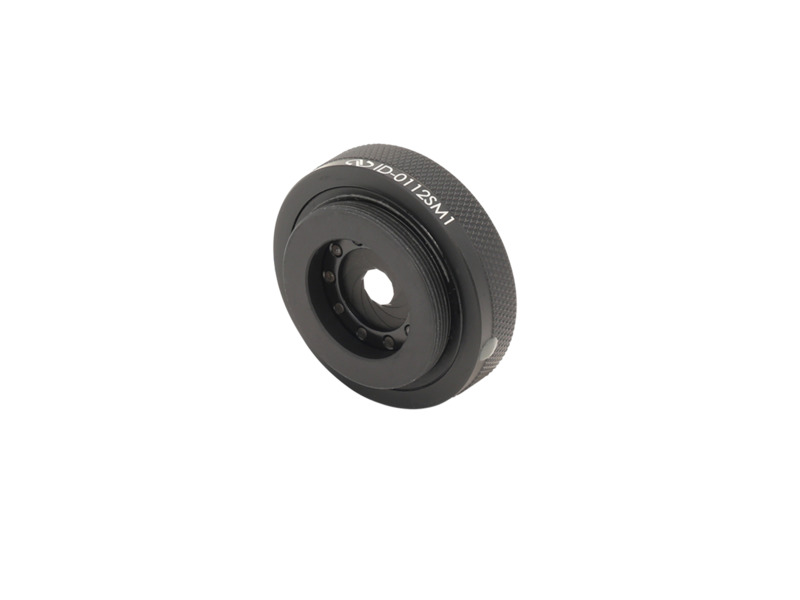

ID-0112SM1 SM1 Threaded Iris Diaphragm

SM1 Threaded Iris Diaphragm, Ring-Actuated, 1-12 mm Aperture Range

Model: ID-0112SM1

$86

In Stock

Compare

Add to List

Product Series Overview

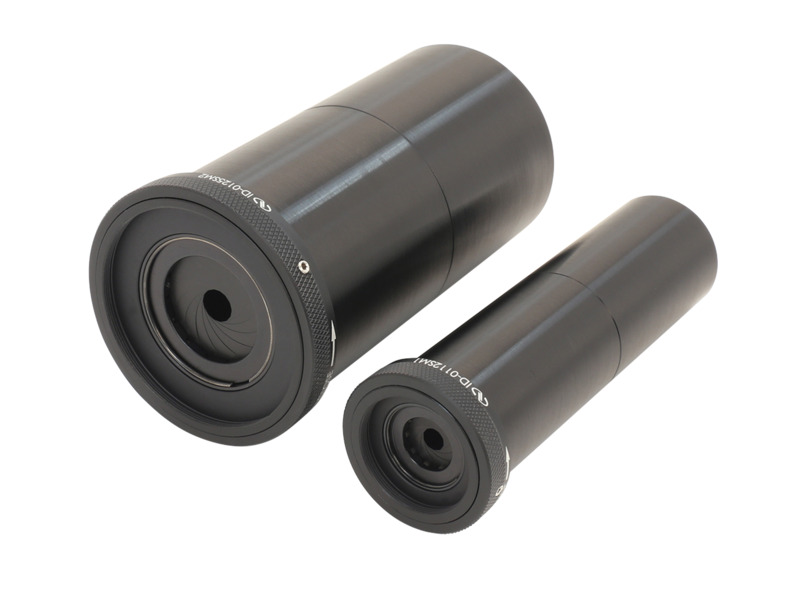

Ring Actuated Threaded Iris Diaphragms

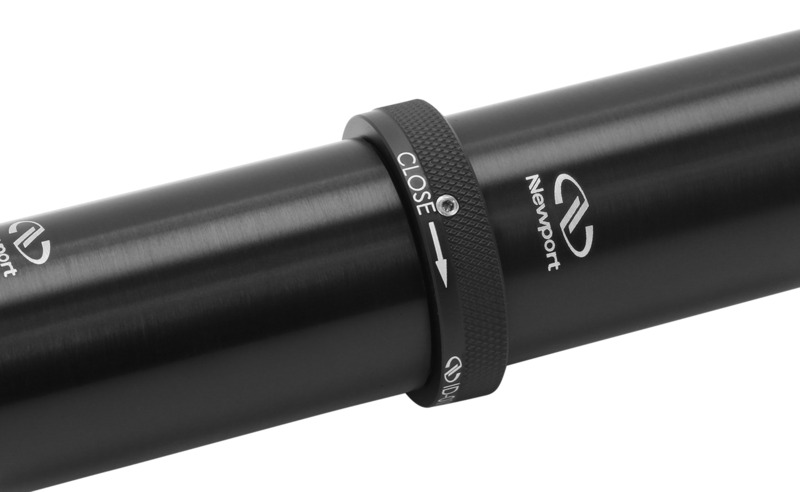

The ID-0112SM1 iris diaphragm is SM1-threaded for use with opto-mechnical components with 1.035-40 thread. The ring-actuated iris diaphragm is low profile with no lever sticking up that could lead to unintended changes. A setscew on the side of housing can further lock the iris in place after designed opening is achieved.

Specifications

Technical Specs

Type

Ring-Actuated Iris Diaphragm
Minimum Aperture

1.0 mm
Maximum Aperture

12 mm
Thread Type

1.035-40

Graduations

No
Number of Leaves

10

Type

Ring-Actuated Iris Diaphragm
Minimum Aperture

1.0 mm
Maximum Aperture

12 mm
Thread Type

1.035-40

Graduations

No
Number of Leaves

10
