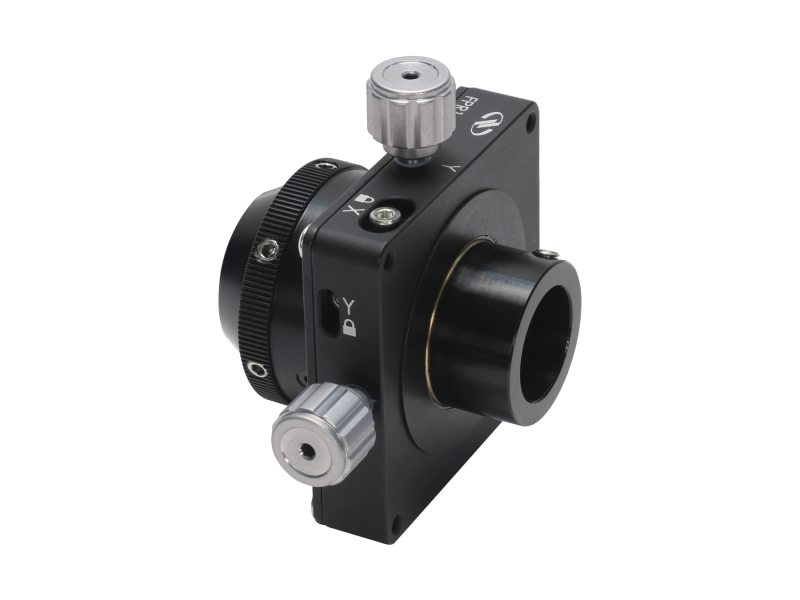

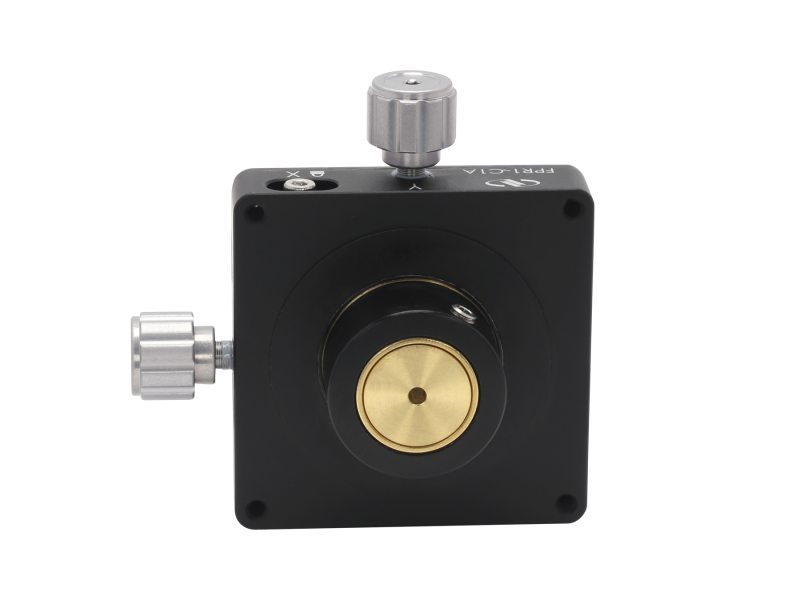

Fiber Optic Positioner, XYZθz, Connectorized, FPH-CA Series

Technical Specs

  • Axes of Travel
    X, Y, Z, θz
  • Travel Range
    X,Y: ±1.6 mm
    Z: ±3.2 mm
  • Optical Axis Height
    25.4 mm
  • Angular Range
    θz: 360°
  • Sensitivity
    X,Y: 0.75 µm
    Z: 1 µm
