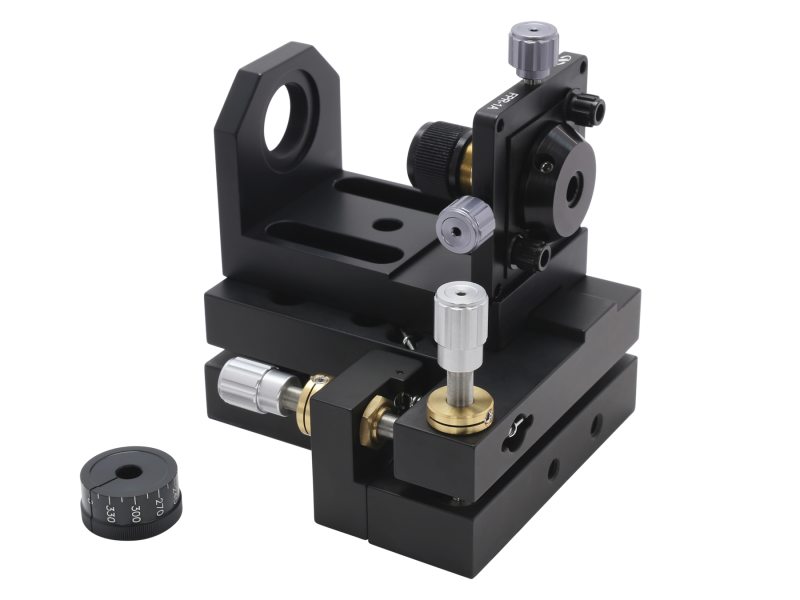

The F-916 Polarization Maintaining Fiber Coupler offers efficient single-mode coupling of a laser beam into a bare PM optical fiber. Compared to F-915, this coupler adds a rotatable chuck mount for orienting polarization-preserving fibers. It provides the sub-micron positioning resolution necessary for high single-mode coupling efficiency. Fine translation and focus, required to position the focused laser beam on the fiber end face, are provided by the three-axis positioner that holds the fiber chuck - high-resolution 100 TPI adjustment screws for smooth XY adjustment and a knurled knob with 80 TPI thread for axial Z motion. Sub-micron resolution, required to optimize coupling to single-mode fibers, is provided by the kinematic tip and tilt stage that also uses 100 TPI adjustment screws to pivot the lens/fiber-holder assembly. Unlike conventional couplers, in which positioner runouts can exceed fiber misalignment tolerances, the fine-tuning tilt adjustments only introduce a second order translation of the beam. The couplers’ optical axis height is fixed at a nominal 3 inch (75 mm), and they have a pattern of tapped and clearance holes in their base for convenient mounting on Newport tables and breadboards. Microscope objective and fiber chuck are sold separately.
F-915Fiber Coupler, Five-Axis, Bare Singlemode Fibers
UNIVERSAL
In Stock
$1,366.00
FPR-1AFiber Optic Positioner, XYZθz, Bare, FPH-S, FPH-J, or FPH-DJ
UNIVERSAL
In Stock
$571.00
Compatible
Compare
Description
Compatibility
Drawings, CAD & Specs
Avail.
Price
M-5XMicroscope Objective Lens, 5x, 0.10 NA, 25.4 mm Focal Length
UNIVERSAL
In Stock
$131.00
M-10XMicroscope Objective Lens, 10x, 0.25 NA, 16.5 mm Focal Length
UNIVERSAL
In Stock
$159.00
F-916 - Drawings & CAD
Additional CAD file downloads are not available for this product.
F-916 - Drawings
Additional drawings are not available for this product.
