Cylindrical Lens, Plano-Convex, UVFS, 12.5 mm, 75 mm FL, Uncoated

Uncoated UVFS Round Plano-Convex Cylindrical Lenses

Uncoated UVFS Round Plano-Convex Cylindrical Lenses

Uncoated UVFS Round Plano-Convex Cylindrical Lenses

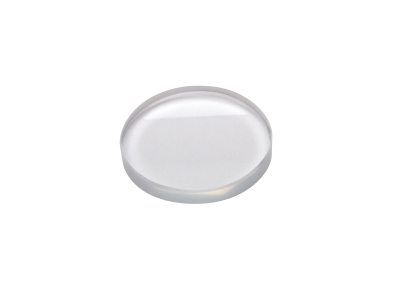

The CSX13 Plano-Convex Cylindrical Lens is an uncoated, 12.50 mm diameter, UV Fused Silica plano-convex cylindrical lens with an effective focal length of 75.00 mm. It is designed to meet the demanding requirements of laser electro-optic applications.

Specifications

Technical Specs

Lens Type
Cylindrical
Lens Shape
Plano-Convex
Size
Ø12.5 mm
Center Thickness (T<sub>c</sub>)
2.00 mm
Edge Thickness (T<sub>e</sub>)
1.49 mm
Lens Material
UV Grade Fused Silica
Antireflection Coating
Uncoated
Surface Quality
40-20 scratch-dig
Effective Focal Length (EFL)
75.0 mm
Back Focal Length (BFL)
73.63 mm

F/#
8
Radius of Curvature (R)
34.39 mm
Focal Length Tolerance
± 3.0%
Center Thickness Tolerance
± 0.1 mm
Wedge
15 arc min
Clear Aperture
11.50 mm
Cleaning
See How to Clean Optics

Lens Type
Cylindrical
Lens Shape
Plano-Convex
Size
Ø12.5 mm
Center Thickness (T<sub>c</sub>)
2.00 mm
Edge Thickness (T<sub>e</sub>)
1.49 mm
Lens Material
UV Grade Fused Silica
Antireflection Coating
Uncoated
Surface Quality
40-20 scratch-dig
Effective Focal Length (EFL)
75.0 mm
Back Focal Length (BFL)
73.63 mm

F/#
8
Radius of Curvature (R)
34.39 mm
Focal Length Tolerance
± 3.0%
Center Thickness Tolerance
± 0.1 mm
Wedge
15 arc min
Clear Aperture
11.50 mm
Cleaning
See How to Clean Optics

Resources & Downloads

Software

CSX13_ZEMAX(1.1 kB, ZIP)

Other

CSX13_ROHS(251.9 kB, PDF)
CSX13 RoHS Certificate(703.4 kB, PDF)

2D Product Drawings

PLANOCO1 VEX-S(89.6 kB, PDF)
