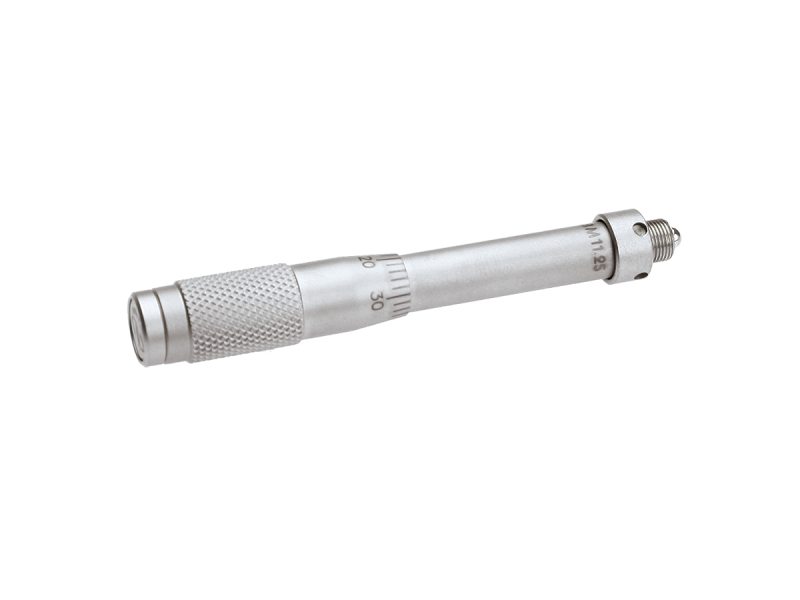

Micrometer Head, Standard Resolution, 25 mm Travel, 9 lb. Load

Model: BM11.25

$238

In Stock

Compare

Add to List

Product Series Overview

BM Thread-Mount Micrometer Heads

The BM11.25 Micrometer features micron-scale resolution and very smooth motion for precision positioning applications. It has a 25 mm travel range and with axial load capacity of 40 N. BM micrometers, which mount via their threaded bezel and are held in place with a threaded collar, are the standard choice of actuator on UMR and MVN Series Stages and on SL Series Mirror Mounts.

Not Just for UMR & MVN Series Stages

Although these micrometers are the standard choice of actuator on UMR and MVN series Stages, their threaded bezel allows them to be used in a variety of applications where precise positioning is required.

Threaded Lock Collar Advantages

The threaded collar found on all BM Series micrometers not only allows easy front-side installation, it also allows the user to fine tune the distance between the micrometer's tip and the contact point.

Compatible Newport Stages & Mounts

BM Series Micrometers are compatible with the following manual stages and mounts.

UMR3 Series
UMR5 Series
UMR8 Series
UMR12 Series
MVN Series
TGN Series
SL Series
SL-A Series

Specifications

Technical Specs

Type

Micrometer
Travel Range

25.0 mm
Drive Type

Knob
Graduations

20 µm

Axial Load Capacity

40 N
Sensitivity

2.0 µm
Mounting Threads

M6x0.5

Type

Micrometer
Travel Range

25.0 mm
Drive Type

Knob
Graduations

20 µm

Axial Load Capacity

40 N
Sensitivity

2.0 µm
Mounting Threads

M6x0.5

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BM Series DWG-S (101.2 kB, PDF)

Other

BM11.25 RoHS Certificate (0, PDF)
REACH Supplier Statement - BM Micrometer.pdf (513.4 kB, PDF)
