Adaptor Top, Fixed, Kinematic Breadboard Adaptor

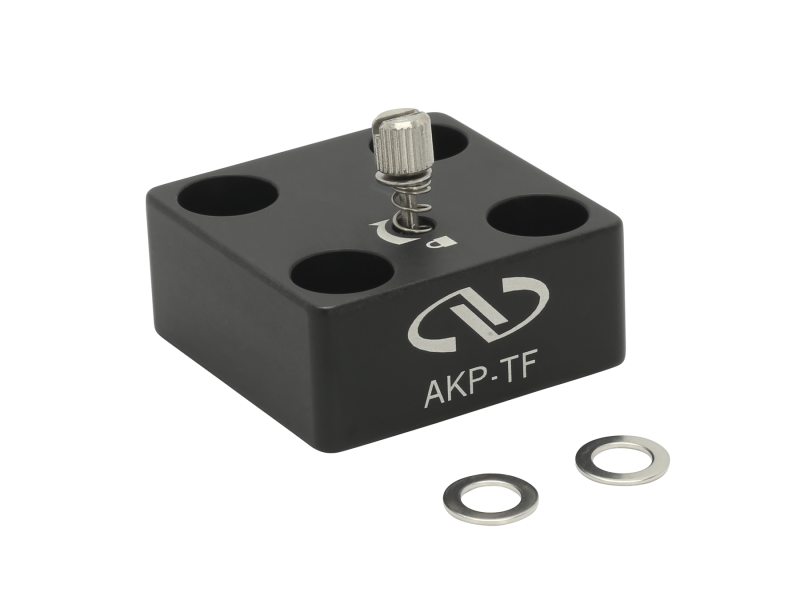

The AKP-TF is the fixed kinematic adaptor plate included with the AKP-FX set of Kinematic Breadboard Adaptors. The AKP-TF Fixed Adaptor set has a captive locking screw that clamps the breadboard down to the AKP-B bases. With the locks engaged, the breadboard cannot be moved or removed. When used with the AKP-BC “Cone”, AKP-BV “V”, and AKP-BF “Flat” these components can be used to create highly stable and repeatable kinematic mechanisms such as custom kinematic bases or mounts in the Cone-V-Flat configuration.

Specifications

Technical Specs

Type
Kinematic Breadboard Adaptor - Top
Thread Type
1/4-20 (M6) CLR

Type
Kinematic Breadboard Adaptor - Top
Thread Type
1/4-20 (M6) CLR

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

AKP-TF.PDF(263.8 kB, PDF)

Other

AKP-TF RoHS Certificate(278.6 kB, PDF)
AKP-TF_RoHS2021.pdf(680.8 kB, PDF)
