Kinematic Base, V-groove, Optical Breadboard Adaptor
Kinematic Base, V-groove, Optical Breadboard Adaptor

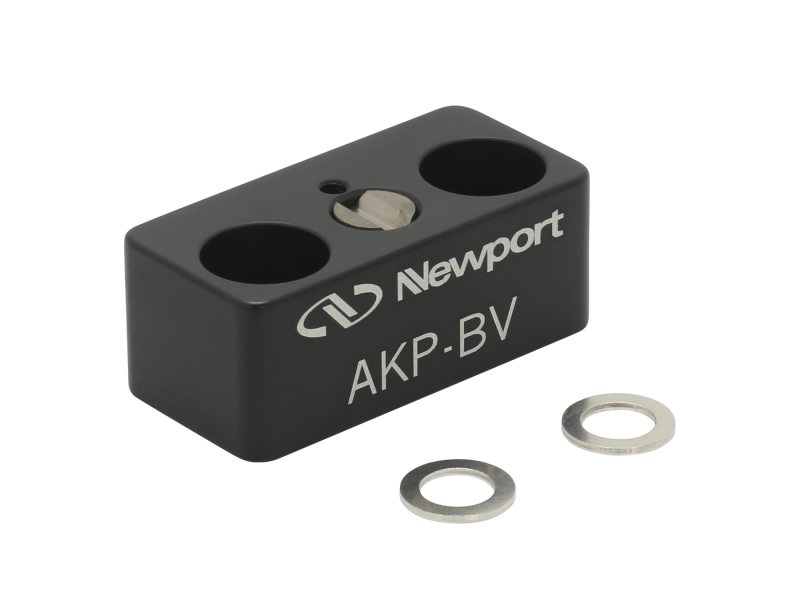

Model: AKP-BV
In Stock
Product Series Overview
Kinematic Breadboard AdaptorsThe AKP-BV is the V version of the three kinematic base plates included with the AKP-AJ and AKP-FX set of Kinematic Breadboard Adaptors. These components can be used to create highly stable and repeatable kinematic mechanisms such as custom kinematic bases or mounts in the Cone-V-Flat configuration. These parts are made to be used together with the AKP-BC “Cone”- and AKP-BF “Flat”- shaped precision kinematic base plates. The precision 10 μ-in. surface finish and the super hard tungsten-carbide material make these ideal for the most demanding applications.
Resources & Downloads
2D Product Drawings
AKP-BV.PDF(198.7 kB, PDF)
Other
AKP-BV RoHS Certificate(278.8 kB, PDF) AKP-BV_RoHS2021.pdf(681.2 kB, PDF)
Related Products
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

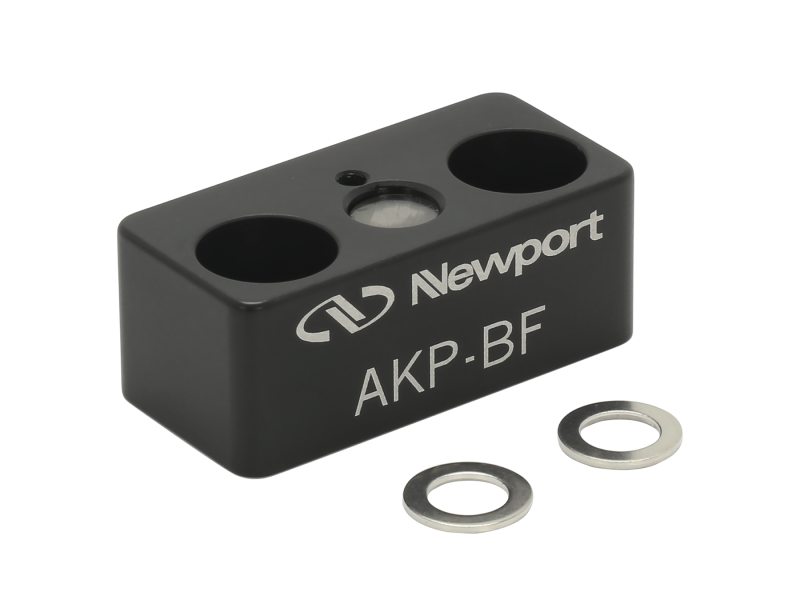

 | AKP-BFKinematic Base, Flat, Optical Breadboard Adaptor | 3 Weeks | ||||

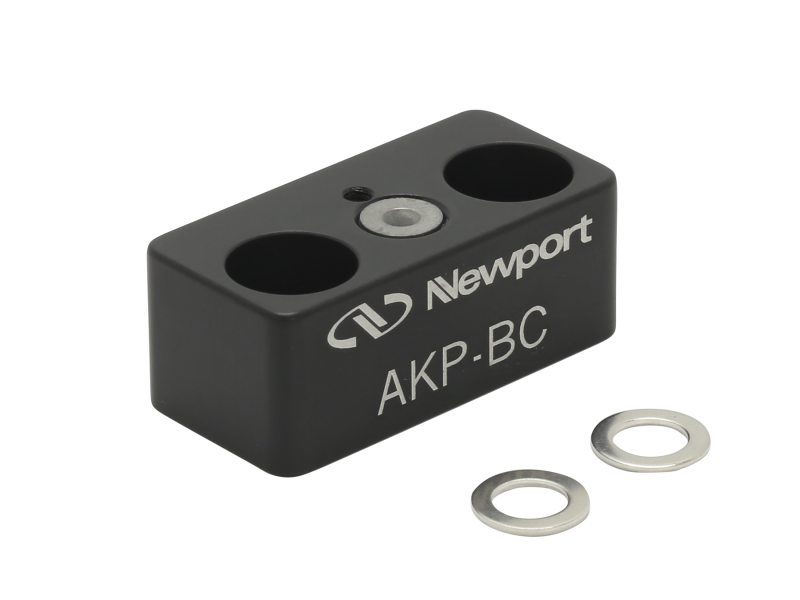

 | AKP-BCKinematic Base, Cone, Optical Breadboard Adaptor | In Stock | ||||

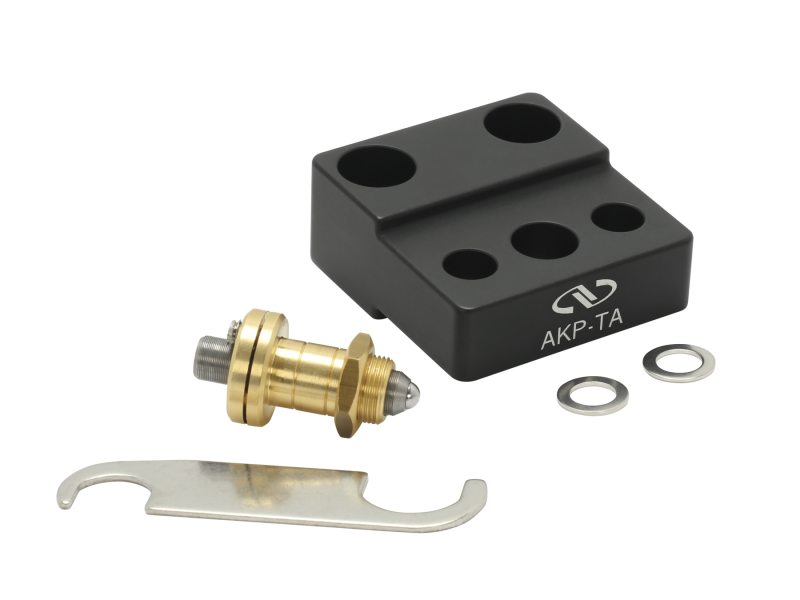

 | AKP-TAAdaptor Top, Adjustable, Kinematic Breadboard Adaptor | In Stock | ||||
