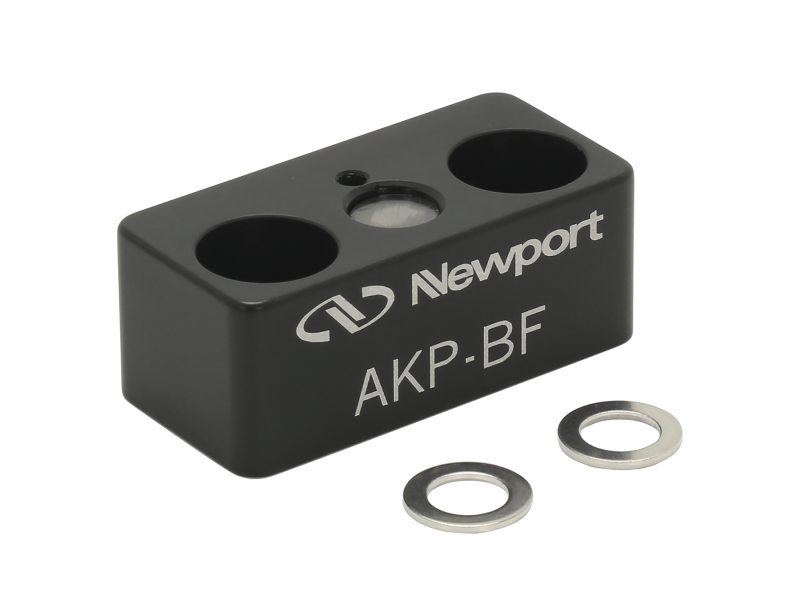

Kinematic Base, Flat, Optical Breadboard Adaptor

The AKP-BF is the Flat version of the three kinematic base plates included with the AKP-AJ and AKP-FX set of Kinematic Breadboard Adaptors. These components can be used to create highly stable and repeatable kinematic mechanisms such as custom kinematic bases or mounts in the Cone-V-Flat configuration. These parts are made to be used together with the AKP-BV “V”- and AKP-BC “Cone”- shaped precision kinematic base plates. The precision 10 μ-in. surface finish and the super hard tungsten-carbide material make these ideal for the most demanding applications.

Specifications

Technical Specs

Type
Kinematic Breadboard Adaptor - Base
Thread Type
1/4-20 (M6) CLR

Type
Kinematic Breadboard Adaptor - Base
Thread Type
1/4-20 (M6) CLR

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

AKP-BF.PDF(202.2 kB, PDF)

Other

AKP-BF RoHS Certificate(277.9 kB, PDF)
AKP-BF_RoHS2021.pdf(679.6 kB, PDF)
