Power Detector, Wand-Style, UV-Si, 200-1100 nm, OD3 Attenuator, DB15

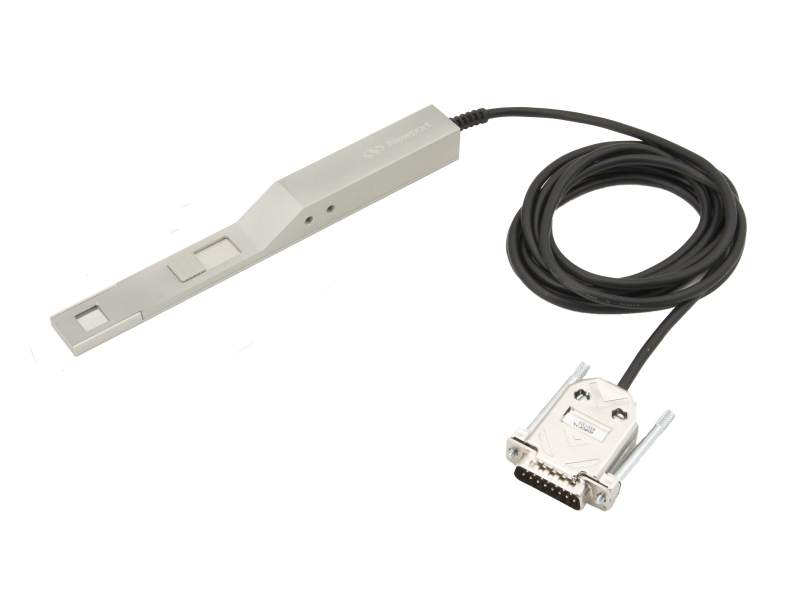

The 918D-ST-UV is a newly redesigned thin-profile, wand detector with a sturdy metal housing. Features include integrated calibration-data storage, built-in OD3 attenuation filter with automatic On/Off detection, and temperature sensing electronics for temperature drift compensation. Incorporating a large area 10 mm X 10 mm UV Enhanced Silicon (Si) photodiode, this slim optical sensor is ideal for laser and other optical power measurements in tight locations with busy setups. It is supplied with a NIST traced calibration report that details individual detector responsivity measured with and without attenuator. The DB15 calibration module provides direct compatibility with Newport’s latest power meters (see Compatible product list below).
Specifications
- TypeWand Style, Post Mounted
- Detector InputFree Space
- Detector MaterialUV Enhanced Silicon
- Spectral Range200 - 1100 nm
- Sensor Size10 x 10 mm
- AttenuatorOD3, Built-in
- Maximum Measurable Power200 mW
- Minimum Measurable Power20 pW
- Maximum Measurable Power Without Attenuator0.3 mW (200 - 400 nm); 0.1 mW (400 - 600 nm, >1050 nm) , 0.07 mW (600 - 1050 nm)
- Maximum Power Density30 W/cm2
- Maximum Power Density without Attenuator0.2 W/cm2
- Maximum Pulse Energy Without Attenuator0.5 nJ
- Maximum Pulse Energy0.5 nJ
- Calibration ModuleDB15 Connector Pigtail
- Calibration Uncertainty3.4% (220-300 nm)
1.65% (300-430 nm)
1.1% (430-1000 nm)
4.3% (1035-1065 nm) - Linearity±0.5 %
- Uniformity±2 %
- Rise Time≤3 µs
- Clear Aperture9.9 x 9.9 mm
- Connector TypeDB15
- Cable Length2 m
- Temperature Range5 to 50°C
- Operating Humidity<70% RH
- RoHSCompliant
