Compare Model Drawings, CAD & Specs Spectral Range Maximum Measurable Power1 Minimum Measurable Power2 Availability Price
Power Detector, Wand-Style, Germanium, 780-1800 nm, OD3 Attenuator, DB15
$1,048.54
780 - 1800 nm 2000 mW 5 nW
Power Detector, Wand-Style, 400-1100 nm, OD3 Attenuator, DB15
$943.48
400 - 1100 nm 2000 mW 20 pW

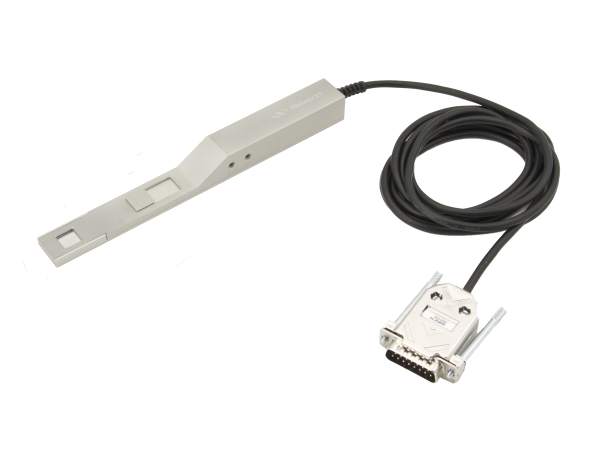

Power Detector, Wand-Style, UV-Si, 200-1100 nm, OD3 Attenuator, DB15
$1,132
200 - 1100 nm 200 mW 20 pW

Specifications

Features

Excellent Photodiode Linearity

These photodiodes show excellent linearity over a large dynamic range. This is ideal for use in applications that require high accuracy measurements down to the pW level, especially when combined with a high sensitivity power meter that can accommodate the large dynamic range of the optical signal.

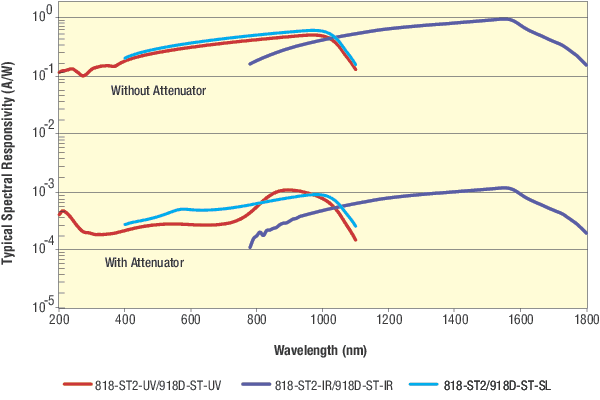

Responsivity Variation over Temperature

A natural characteristic of a photodiode is for the its optical response to change as the temperature changes near the bandgap of semiconductor materials. Newport’s 918D series sensors feature a thermocouple near the photodiode, which allows certain Newport meters to read the temperature and automatically adjust the responsivity, ensuring the most accurate measurements.

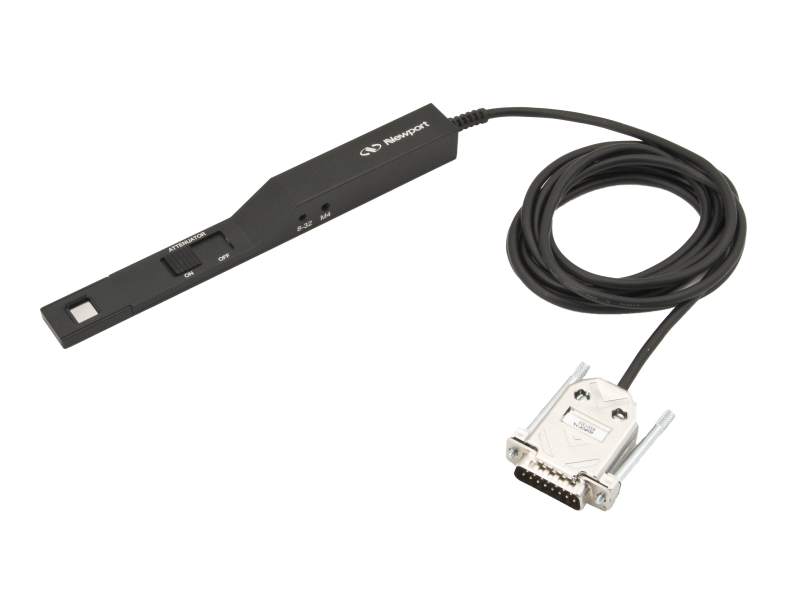

Switchable Attenuation Filter with On/Off Sensor

918D Series photodiode sensors feature a built-in attenuation filter that is engaged with an On/Off switch.  Compared to our earlier 818 Series detectors with a removable threaded OD3 attenuator there are no worries about misplacing it. An attenuator On/Off position sensor lets connected Newport power meter models 1936-R, 2936-R, 1919-R and 841-PE-USB know when the attenuator is present so the the power readings can automatically be adjusted. 918D sensors are available with OD1 (10x), OD2 (100x), or OD3 (1000x - except for the UV model) attenuators.

Wide Dynamic Range with OD3 Attenuator

The 884 Series OD3 attenuators extend the calibrated optical dynamic range of our detectors by three decades. Both the attenuator and detector have their serial number scribed on the part which, to maintain calibration, must match. Our attenuator design provides high damage threshold and spectral flatness. With the low noise equivalent power (NEP) associated with the photodiodes being used, a wider dynamic range is achieved. The clear aperture of the 884 Series attenuators is 10.3 mm.

NIST-traceable Sensor Calibration

Our calibrated photodiode sensors include a full spectral response calibration utilizing NIST-traceable standards calibrated with high-precision equipment maintained in Newport’s optical detector calibration facility. Tight calibration facility and process control allows the tightest calibration uncertainty in industry. Each detector is shipped with the calibration data, which is electronically stored inside the detector's EEPROM. A certificate of calibration as well as the actual calibration curves and data are shipped with each detector for attenuator and no attenuator models. To maintain accuracy and guarantee performance, Newport recommends annual photodiode detector calibration.

Detector calibration system block diagram.

Internal Temperature Sensor

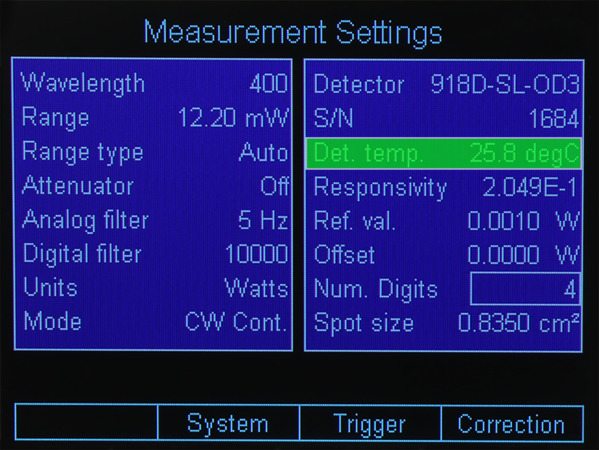

The internal temperature sensor on the detector head is used to compensate the responsivity drift caused by the temperature change in the photodiode. The responsivity change is most sensitive around the bandgap, or towards the longer wavelength limit. The power meter calculates the temperature and automatically updates the responsivity value so that the measurements remain accurate. This feature is enabled with the power meter models 1936-R, 2936-R, 1919-R, and 841-PE-USB.

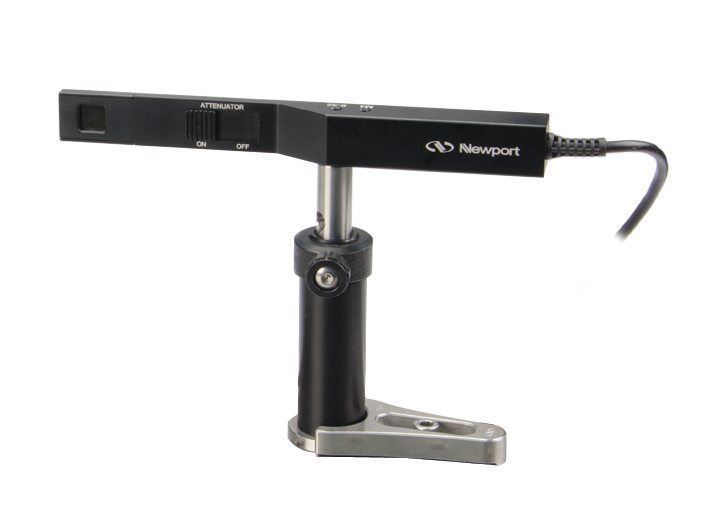

Post-Mountable for Steady Positioning

The sensor can be placed in a fixed, steady position by mounting it on an optical post. Each wand detector includes 8-32 and M4 mounting holes on both sides of the device for versatility in placement within optical systems.

Compatible Power Meters

Newport offers a comprehensive range of optical power meters from low cost, hand-held meters to the most advanced dual-channel benchtop meter available in the market. Presented here is a list of meters compatible with the 918D Series sensors. For more detailed information about our power meters, please see our Optical Power Meter Guide.

2936-R-grey_sensor

1936-R/2936-R

1830_Front_10_586

1830-R

1919-R_angle

1919-R

843-R_side

843-R

841-PE-USB

841-PE-USB
Temperature Sensing
Automatic Attenuator Sensing
Measurement Modes

Power

Peak-to-Peak Power

RMS Power

Power

Power

Exposure

Power Power
Analog Bandwidth Up to 400 kHz Up to 20 kHz  15 Hz  15 Hz 15 Hz
Data Storage 250,000 pts internal   Limited by USB memory size

843-R-USB: Via PMManager

843-R: None

Via PMManager
Measurement Rate per Second 10,000 20 15 15 15
Trigger In/Out
Computer Interface

USB

RS-232

USB

RS-2321

GPIB1

USB

RS-232

843-R-USB: USB

843-R: None
USB

Only available with model 1830-R-GPIB

Additionally, please refer to Newport Power Meter and Detector Legacy and Compatibility for a complete list of meters that are compatible with this model.
