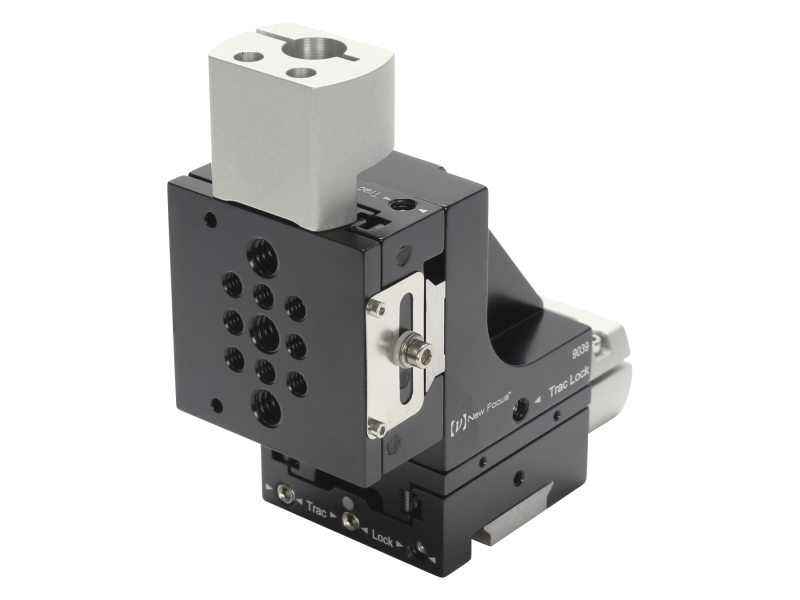

XZ Linear Stage, Triple Divide, 14 mm Travel, M4 & M6

  • Axes of Travel
    X, Z
  • Maximum Stage Travel
    14 mm
  • Centered Normal Load Capacity
    53 N
  • Straight Line Accuracy
    <3 µm
  • Material
    Aluminum
  • Bearings
    Single-Row Ball Bearings
  • Thread Type
    M4 and M6
  • Recommended Adjustment Screw
  • Recommended Vernier Micrometer
  • Recommended Lockable Micrometer
  • Recommended Piezo Actuator
