Top Plate, Spare, 9031-M Aligner, M3
Top Plate, Spare, 9031-M Aligner, M3
Model: 9031-TP-M
In Stock
Product Series Overview

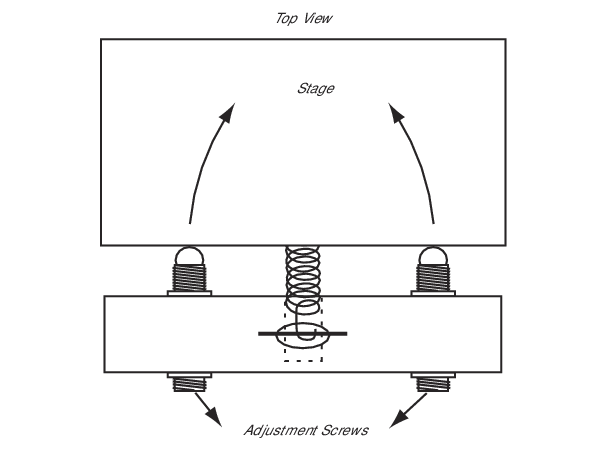

Kinematic Optical Device Alignment StagesThe 9031-TP-M is the removable M3 threaded top plate included with the 9031-M six-axis aligner. It is sold separately to enable quick interchangability of mounted devices on to the 9031-M stage.
Resources & Downloads
2D Product Drawings
9031-TP-M(131.7 kB, PDF)
Other
9031-TP-M_RoHS2021.pdf(688.6 kB, PDF)
