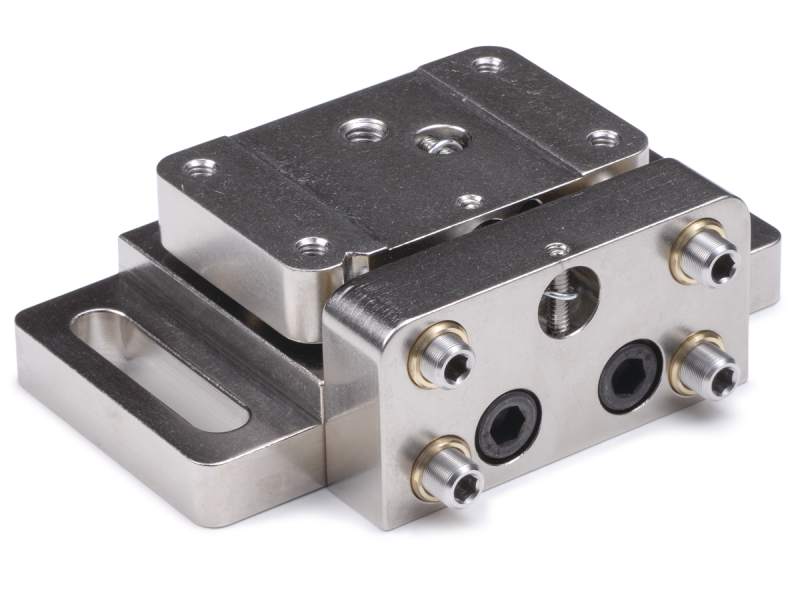

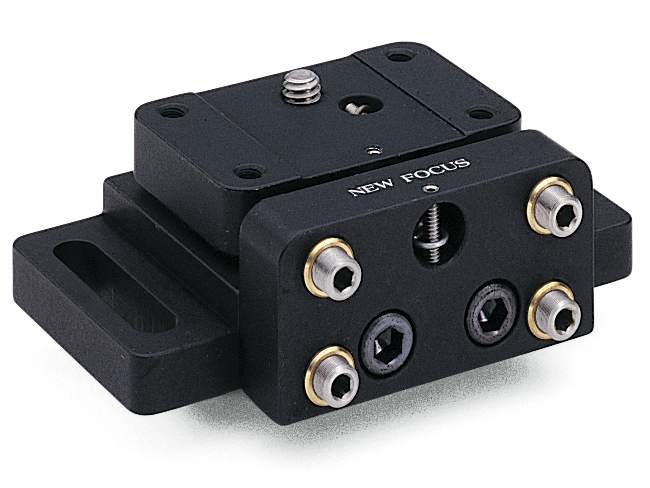

Device Alignment Stage, Four-Axis, 3 mm Linear, 8° Angular, M4 and M6

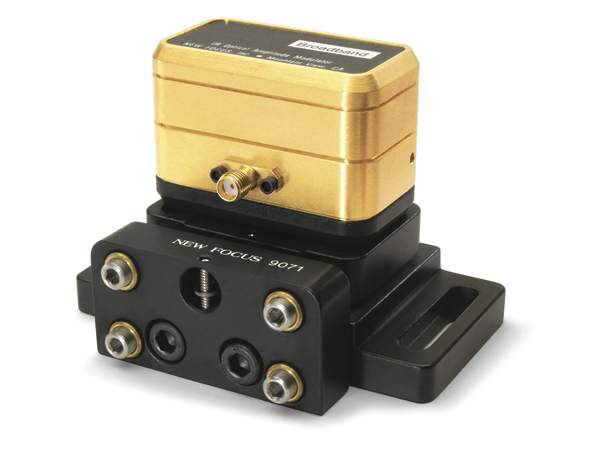

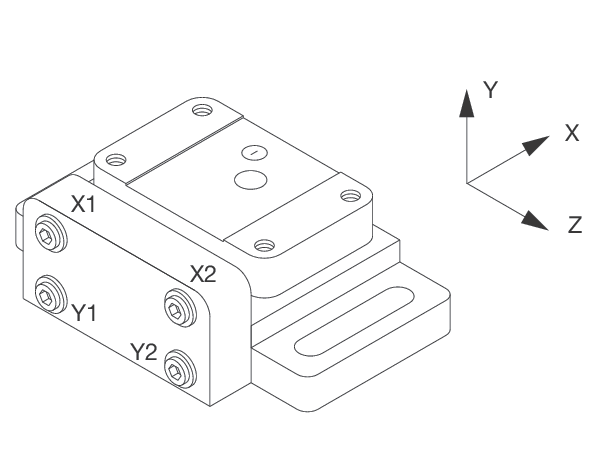

The 9071-M Four-Axis Tilt Aligner allows you to intuitively align optical tubes that comprise an input and an output (e. g., electro-optic or acousto-optic modulators or lenses). Center one end to the laser beam, then adjust the other until the beam emerges. All motions are independent and connected to a single base, so you won't induce coupled motion while making adjustments. These stages are great for aligning New Focus® modulators. M4 and M6 Threads. Patent Number 5,303,035
Resources & Downloads
2D Product Drawings
9071e-Drawing(127.9 kB, PDF) 99-9071(102 kB, PDF)
Other
Kinematic Device Alignment Stages RoHS 3 Certificate(665 kB, PDF)
