Top Plate, Spare, 9031 Aligner, 4-40

Top Plate, Spare, 9031 Aligner, 4-40

Model: 9031-TP

$69.00

In Stock

Compare

Add to List

Product Series Overview

Kinematic Optical Device Alignment Stages

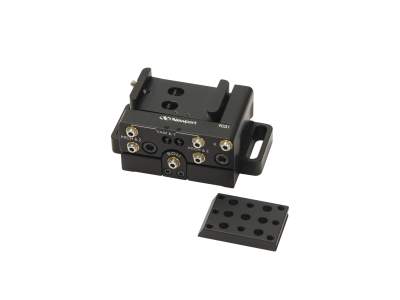

The 9031-TP is the removable 4-40 threaded top plate included with the 9031 six-axis aligner. It is sold separately to enable quick interchangability of mounted devices on to the 9031 stage.

Specifications

Technical Specs

Material

Aluminum
Thread Type

4-40

Material

Aluminum
Thread Type

4-40

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9031-TP (126.7 kB, PDF)

Other

9031-TP_RoHS2021.pdf (688.6 kB, PDF)
