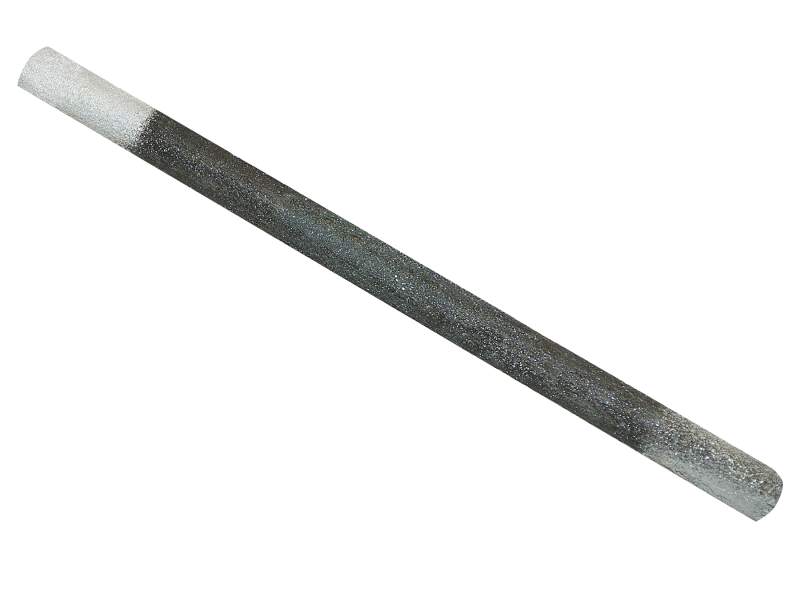

6363 Infrared Emitter

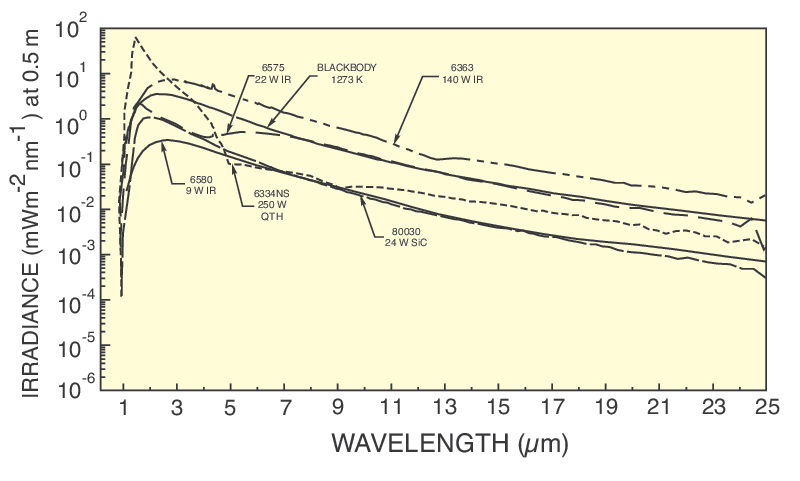

The 6363 is a powerful 140 watt infrared (IR) emitter for use with Oriel's Q Series and Research Series lamp housings. Its shape and mounting position allow the emitter to line up well with a monochromator's input slit. Unlike some other types of light sources which emit IR radiation, the 6363 is a convenient and economical design with sufficient radiant output and spectral uniformity to be of practical use in IR instrumentation applications. Install the emitter into the lamp housing using the 60041 Socket Adapter, ordered separately.

Specifications

Technical Specs

Lamp Type

IR Emitter
Lamp Wattage

140 W
Average life

3000 hrs
Nominal Radiating Area

6.4 x 17.5 mm

Lamp Current

12 A
Lamp Voltage

12.0 V

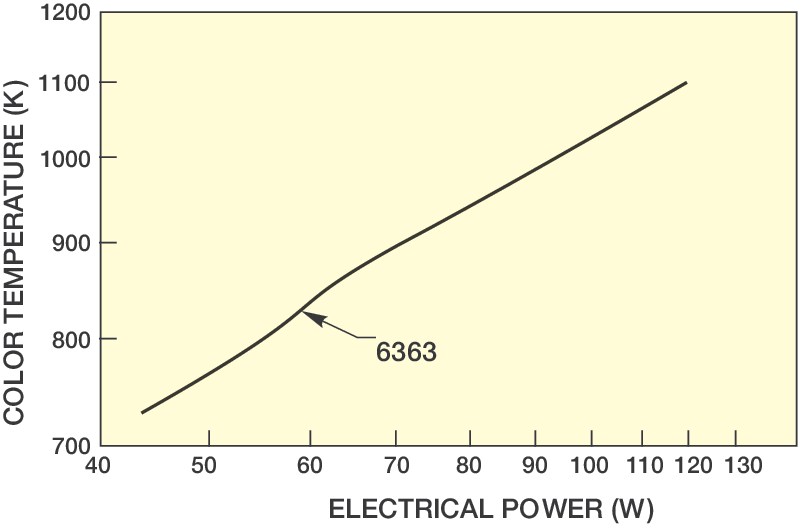

Color Temperature

1000 - 1050 K

Lamp Type

IR Emitter
Lamp Wattage

140 W
Average life

3000 hrs
Nominal Radiating Area

6.4 x 17.5 mm

Lamp Current

12 A
Lamp Voltage

12.0 V
Color Temperature

1000 - 1050 K

Resources & Downloads

Literature

Light Sources (1.6 MB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LS-138a-6363 (459.4 kB, PDF)
