IR Emitter, 24 W, Silicon Carbide
IR Emitter, 24 W, Silicon Carbide
Model: 80030
4 Weeks
Product Series Overview

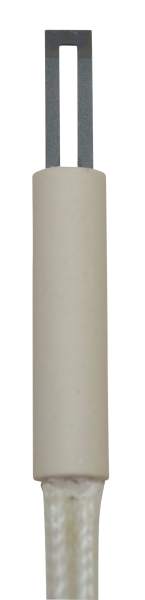

IR Sources for FT-IR Spectrometer ScannersMany sources emit infrared radiation to some degree, but only a few combine convenience and economy with sufficient radiant output and spectral uniformity to be practical in IR instrumentation. The 80030 is a replacement IR emitter for the 80007 silicon carbide light source. The emitter is 3.8 x 12.7 mm with an actual radiating area of approximately 3.8 x 5 mm.
Resources & Downloads
Literature
Light Sources(1.6 MB, PDF)
Drawings & CADs
LS-138a-80030.pdf(463.4 kB, PDF)
