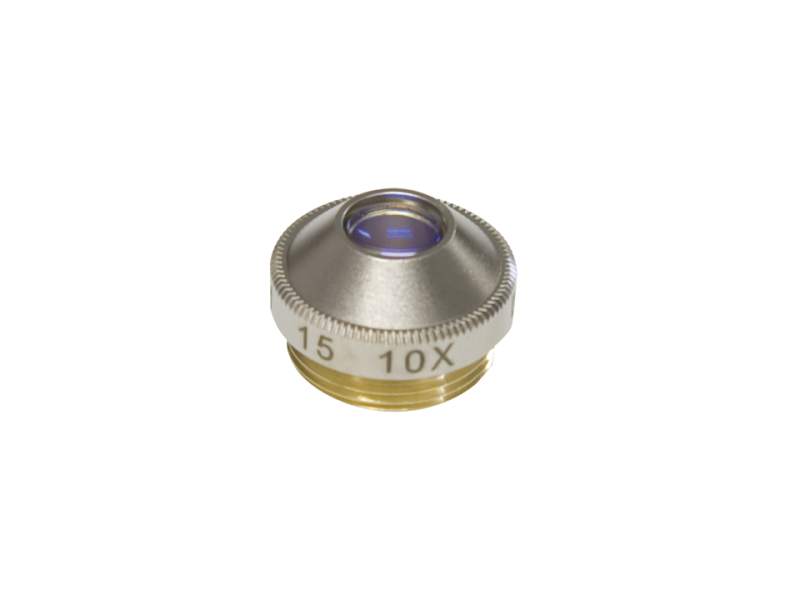

Aspheric Objective Lens, 10x, 15.4 mm EFL, 625-1050 nm

Technical Specs

  • Objective Type
    Plano-Convex Aspheric
  • Lens Shape
    Plano-Convex Aspheric
  • Magnification
    10x
  • Diameter
    6.35 mm
  • Numerical Aperture
    0.2

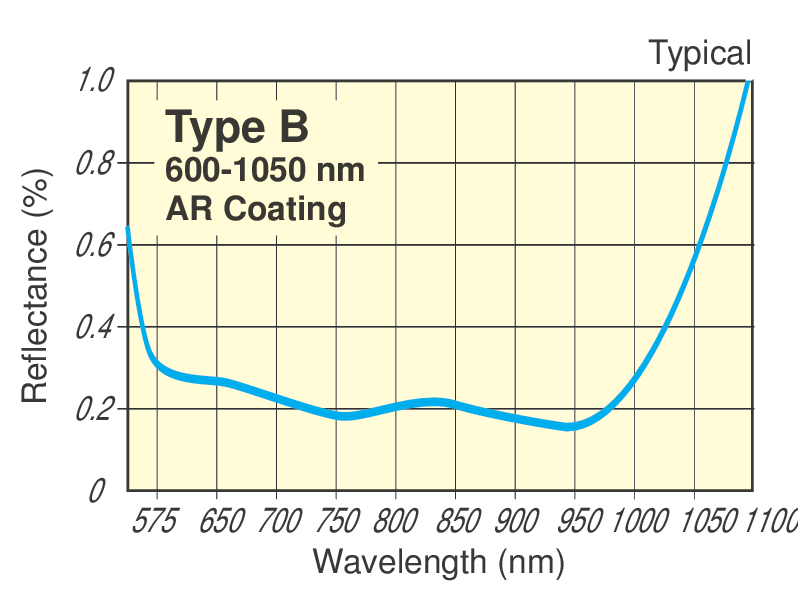

  • Antireflection Coating
    625-1050 nm
  • Wavelength Range
    625-1050 nm
  • Coating Code
    -B
  • Lens Material
    Corning C0550 Glass
  • Effective Focal Length (EFL)
    15.3 mm
  • Working Distance
    14.0 mm
  • Wavefront Error
    0.072 λ
  • Design Wavelength
    780 nm
  • Holder Length
    10.5 mm
  • Clear Aperture
    5.0 mm
