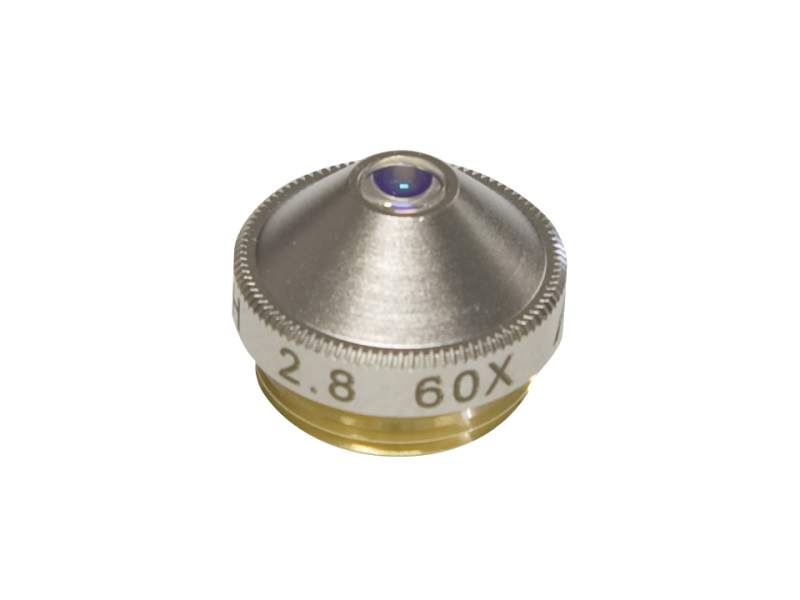

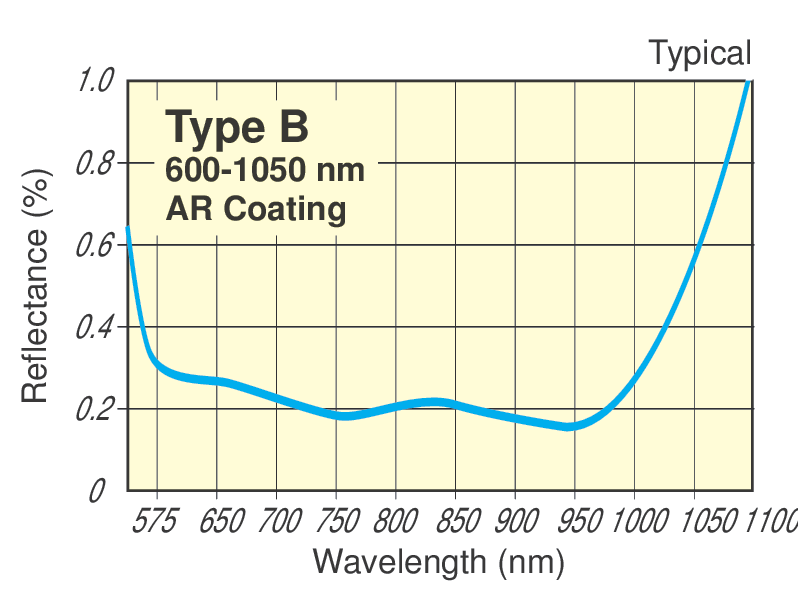

The 5721-B-H Aspheric Objective Lens is made with D-ZLaF52La. It is 4.0 mm diameter with 60x magnification and a focal length of 2.8 mm. This aspheric lens has a housing length of 11.8 mm with 3.6 mm clear aperture and a working distance of 1.6 mm. It is AR coated for the wavelength range of 600 to 1050 nm. This compact glass plano-convex aspheric lens is a convenient, high-quality alternative to microscope objectives. It is especially handy for low f-number applications like coupling light into and out of optical fibers or collimating diode lasers since the aspheric surface minimizes the aberrations. A model 5709 RMS threaded adapter is required for use as a microscope objective. A model 5708 optical mount adapter allows these objectives to be mounted in a 1 inch diameter optical mount.
5724-B-HAspheric Objective Lens, 20x, 8.0 mm EFL, 600-1050 nm
UNIVERSAL
In Stock
$306.00
5722-B-HAspheric Objective Lens, 40x, 4.5 mm EFL, 600-1050 nm
UNIVERSAL
3 Weeks
$286.00
5721-B-H - Drawings & CAD
Additional CAD file downloads are not available for this product.
5721-B-H - Drawings
Additional drawings are not available for this product.
