Adaptor, Raises 561 Stage to 562 Height, 0.75 in.

Adaptor, Raises 561 Stage to 562 Height, 0.75 in.

Model: 561-ADPT

$62.00

In Stock

Compare

Add to List

Product Series Overview

ULTRAlign Fiber Alignment Accessories

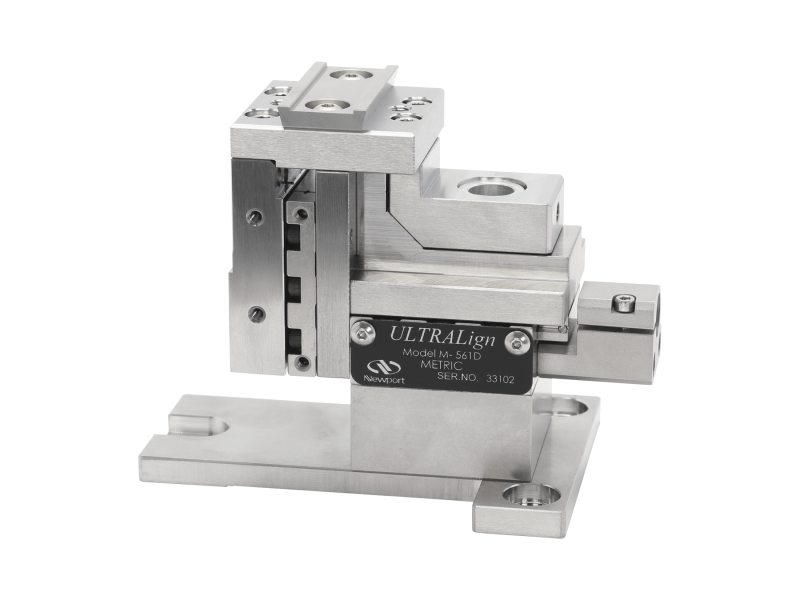

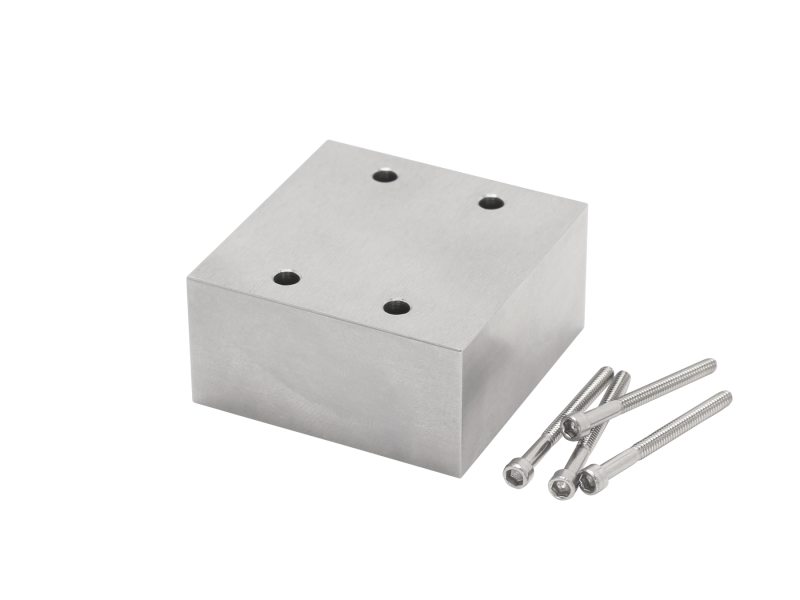

The 561-ADPT Height Adaptor raises 561D-XYZ and 561D-YZ stages to the height of a 562 stage. To attach the 561-ADPT, the bottom base plate of the 561D-XYZ or 561D-YZ must first be removed. Then, the 561-ADPT can be placed between the base plate and stages and secured with the four included screws.

Specifications

Technical Specs

Material

Steel

Material

Steel

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

561-ADPT-S (156.4 kB, PDF)

Other

561-ADPT_RoHS2021.pdf (681.6 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price
561-UST Fixed Platform, Universal Stand, 561 Series	UNIVERSAL	In Stock	$370.00
561-OBM Blank, Objective Lens Mount	UNIVERSAL	In Stock	$150.00
561-TS Fixed Platform, Narrow Profile T-Stand, 561 Series	UNIVERSAL	In Stock	$364.00

Compatible

Description	Compatibility	Avail.	Price
561D-XYZ-LH Fiber Alignment Stage, ULTRAlign, Left-Handed, 6 mm XZ 13 mm Y Travel, 8-32	IMPERIAL	2 Weeks	$2,588.00
561-FC Fiber Chuck Holder, 0.25 inch, 561 Series	UNIVERSAL	In Stock	$171.00
561D-XYZ Fiber Alignment Stage, ULTRAlign, Right-Handed, 6 mm XZ 13 mm Y Travel, 8-32	IMPERIAL	In Stock	$2,588.00
561D-YZ Fiber Alignment Stage, ULTRAlign, Right-Handed, 6 mm Z 13 mm Y Travel, 8-32	IMPERIAL	In Stock	$1,579.00
561-OBJ Objective Lens Mount, 561 Series	UNIVERSAL	In Stock	$171.00

Frequently Purchased Together

Description	Compatibility	Avail.	Price
SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI	UNIVERSAL	In Stock	$103.00
561D-YZ Fiber Alignment Stage, ULTRAlign, Right-Handed, 6 mm Z 13 mm Y Travel, 8-32	IMPERIAL	In Stock	$1,579.00
561-GM Gimbal Fiber Chuck Positioner, 561 Series, 3 Rotation Axis	UNIVERSAL	4 Weeks	$726.00
M-561D-YZ Fiber Alignment Stage, ULTRAlign, Right-Handed, 6 mm Z 13 mm Y, M4	METRIC	In Stock	$1,579.00
561-UM Universal Module, 561/562 Rail	IMPERIAL	2 Weeks	$119.00
FPH-S-2.5 Fiber Holder, 80–200 micron Fiber, Extended	UNIVERSAL	In Stock	$102.00
