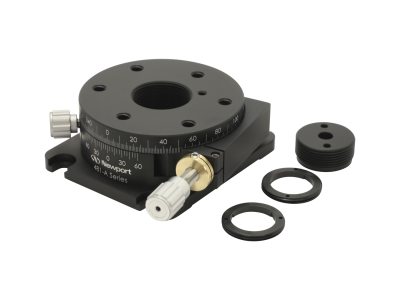

Rotation Stage, 360° Coarse, 5° Fine, Adjustment Screw, 8-32 and 1/4-20

Technical Specs

  • Coarse Travel
    360°
  • Fine Travel
  • Diameter
    73.2 mm
  • Load Capacity
    178 N
  • Sensitivity
    15 arc sec
  • Thread Type
    8-32 and 1/4-20
  • Optic Diameter
    25.4 mm
  • Optic Thickness
    9 mm
  • Clear Aperture
    19.1 mm
  • Backlash
    Negligible
  • Graduations
  • Vernier
    5 arc min
  • Maximum Drive Torque
    0.9 Nm
  • Weight
    0.36 kg
  • Included Actuators
  • Recommended TRA Motorized Actuator
  • Recommended TRB Motorized Actuator
