High-Power Temperature Controller, ±14 A, 24 VDC, 336 W

Model: 3700

High-Power Temperature Controller, ±14 A, 24 VDC, 336 W

Model: 3700

Technical Specs

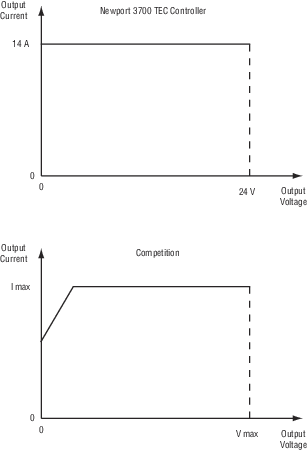

  • TE Current Range
    -14.00 to +14.00 A
  • TE Voltage Range
    -24 to + 24 V
  • TE Output Power
    336 W
  • TE Current Accuracy
    ± 0.3%
  • TE Current Limit Accuracy
    ± 0.3 % FS
  • Temperature Range
    -100 to + 250 °C
  • Computer Interfaces
    USB
  • Connector Type
    7-pin, female D-Sub 7W2
  • Power Requirements
    100-240 VAC, 50/60 Hz universal input
  • Chassis Ground
    4 mm banana jack

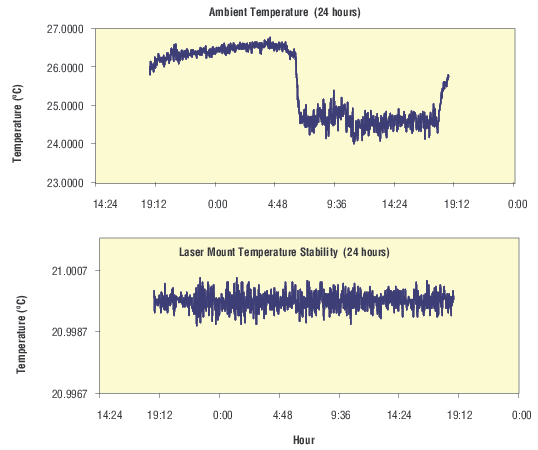

  • TEC Output 24 h Stability
    0.0019 °C
  • TEC Output 1 h Stability
    0.0009 °C
  • Display Range Resistance (10 µA)
    0.01 to 250.00 kΩ
  • Display Range Resistance (100 µA)
    0.001 to 25.000 kΩ
  • TEC Noise/Ripple
    <1 mA
  • Display Type
    4-line by 20 character alphanumerical, and seven segment display
  • Weight
    5.1 kg
  • Operating Temperature
    0 to 40 °C

Resources & Downloads

Literature
Manuals
Software

High-Power Temperature Controller, ±14 A, 24 VDC, 336 W

Model: 3700

$4,750.00
In Stock
