Intermediate Adaptor Plate, 86 x 86 mm Square, PI86.02 Series

Model: 338286

$74

In Stock

Compare

Add to List

Product Series Overview

Intermediate Adaptor Plates, PI Series

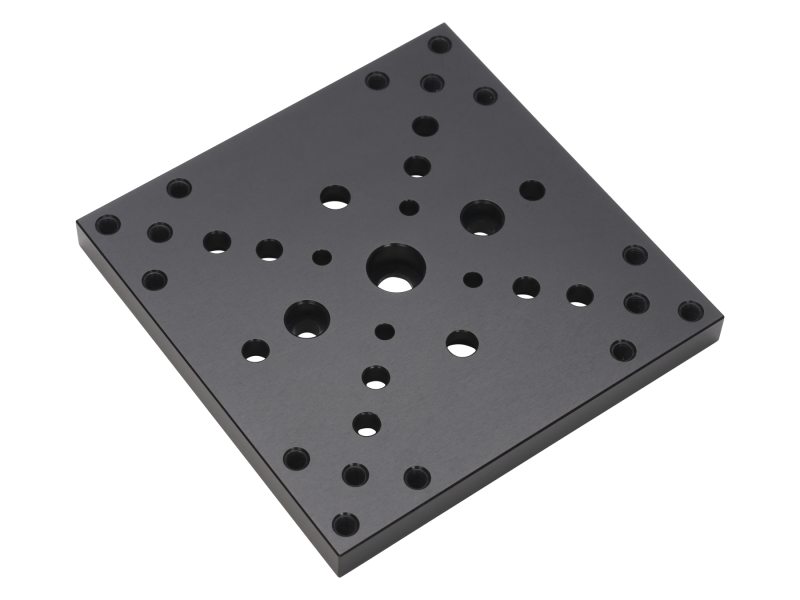

The 338286 Square Intermediate Adaptor Plate is 86 x 86 mm and is designed to allow two components of different sizes and without a common hole pattern to be attached together. It is made of aluminum and compatible with UMR8 stages.

Specifications

Technical Specs

Type

Intermediate Adaptor Plate
Dimensions

86 x 86 mm
Material

Aluminum

Use

UMR and UTR Stages

Type

Intermediate Adaptor Plate
Dimensions

86 x 86 mm
Material

Aluminum

Use

UMR and UTR Stages
