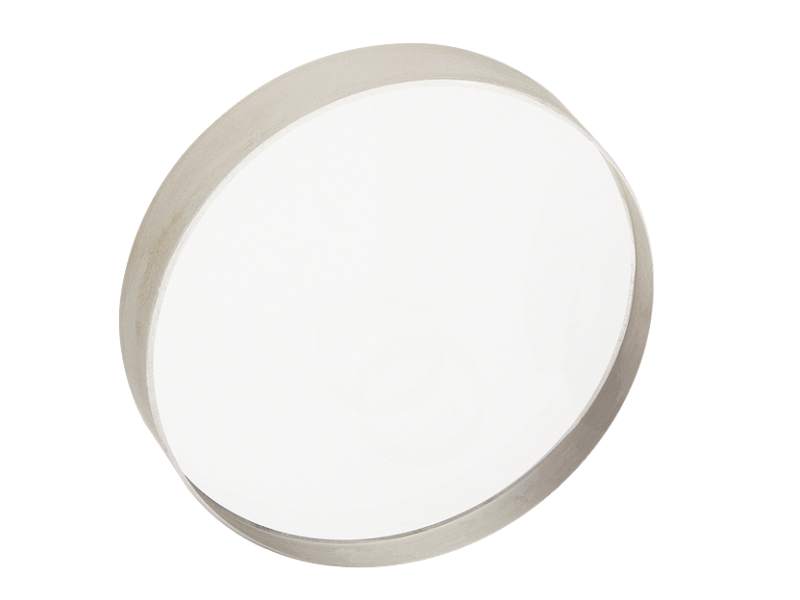

Optical Window, Parallel, N-BK7, 50.8 mm, λ/20, Uncoated
Optical Window, Parallel, N-BK7, 50.8 mm, λ/20, Uncoated
Model: 20BW40-30
Product Series Overview
N-BK7 Optical WindowsThe 20BW40-30 Laser-Grade Parallel Window is parallel to less than 30 arc sec for minimal transmitted beam deviation. This 2 inch (50.8 mm) diameter N-BK7 window is 10 mm thick. It is uncoated. For demanding applications, such as intracavity laser applications, holography, and multiphoton imaging, this window has a λ/20 surface flatness and 10-5 scratch-dig significantly reducing unwanted scatter.
Resources & Downloads
Other
20BW40-30 RoHS Certificate(706.9 kB, PDF)
Related Products
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 20Q20XAR.14Laser Wedged Window, High-Energy, 50.8 mm Diameter, 430-700 nm | In Stock | ||||
 | FSW18Parallel Optical Window, UV Fused Silica, 50.0 mm, λ/10, Uncoated | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

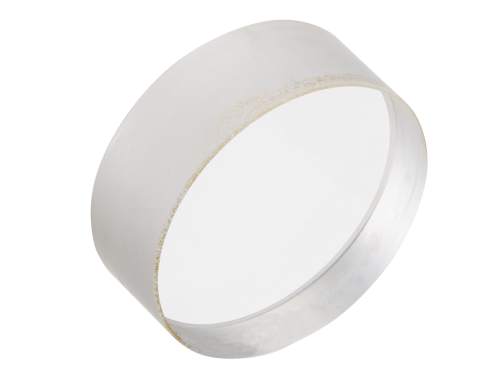

 | 10QB20Interferometer Flat, UVFS, 25.4 mm, λ/10, 10-5 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
