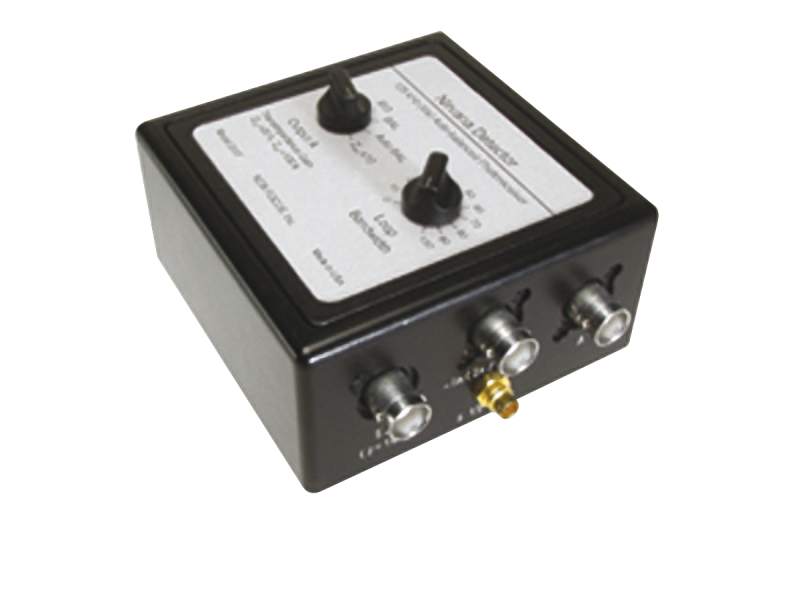

Auto-balanced Optical Receiver, Nirvana, 800-1700 nm, 125 kHz, 8-32 / M4

The 2017 Nirvana Auto-Balanced Optical Receiver can cut the effects of laser noise by 50 dB, making even very small signals easy to see. The 2017 has a 800-1700 nm wavelength range. In spectroscopy, ellipsometry, or heterodyne-detection experiments, these receivers can yield shot-noise-limited performance without the need for lock-in amplifiers or high-frequency modulation. 8-32 mounting thread. M4 metric adaptor and tool now included.

An external power supply, which must be purchased separately, is required – we recommend our power supply. Power supply cables and are included with each receiver.

Specifications

Technical Specs

Device Type
Balanced Receiver
Optical Input
Fiber-optic and Free Space
Detector Type
PIN
Detector Diameter
1 mm
Wavelength Range
800-1700 nm
3 dB Bandwidth
DC to 125 KHz
Rise Time
3 µs
Maximum Conversion Gain
1 x 10⁶ V/W
Maximum Transimpedance Gain
1x10⁶ V/A

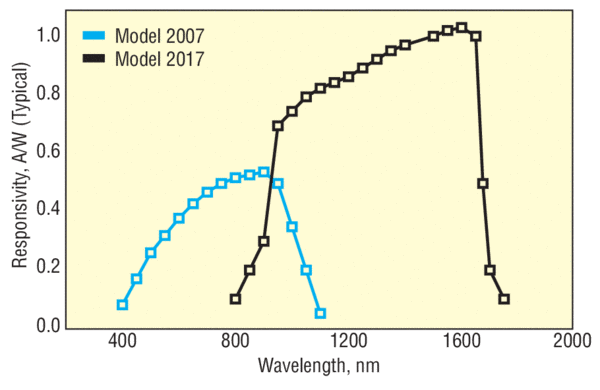

Peak Responsivity
1.0 A/W
NEP
3 pW/√Hz

Common Mode Rejection
50 dB
Saturation Power
0.5 mW
Maximum Optical Power
4 mW
Maximum RF Power
+12 dBm bei 50 Ω
Output Connector
BNC
Output Impedance
100 Ω
Power Requirements
±15 V, 300 mA
Thread Type
8-32

Device Type
Balanced Receiver
Optical Input
Fiber-optic and Free Space
Detector Type
PIN
Detector Diameter
1 mm
Wavelength Range
800-1700 nm
3 dB Bandwidth
DC to 125 KHz
Rise Time
3 µs
Maximum Conversion Gain
1 x 10⁶ V/W
Maximum Transimpedance Gain
1x10⁶ V/A
Peak Responsivity
1.0 A/W
NEP
3 pW/√Hz

Common Mode Rejection
50 dB
Saturation Power
0.5 mW
Maximum Optical Power
4 mW
Maximum RF Power
+12 dBm bei 50 Ω
Output Connector
BNC
Output Impedance
100 Ω
Power Requirements
±15 V, 300 mA
Thread Type
8-32

Resources & Downloads

2D Product Drawings

20x7 Drawing(138.2 kB, PDF)

Other

MKS EU ROHS3 - 20x7.pdf(228.9 kB, PDF)
2007_2017 CE Declaration of Conformity.pdf(103.1 kB, PDF)

Manuals

90099912 Nirvana Auto-balanced Photoreceiver User Manual Rev A.pdf(4.1 MB, PDF)

Related Products

Accessories (sold separately)

Description	Compatibility	Avail.	Price
0901Lab Power Supply, ±15 VDC	UNIVERSAL	In Stock	$570
0923-2Accessory Cable, Pico (m8) Double-Ended, Male to Male, 2 m	UNIVERSAL	In Stock	$69
0927Accessory Cable, BNC Male, SMB Plug	UNIVERSAL	In Stock	$119

Included Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		0923Accessory Cable, Pico (m8) Double-Ended, Male to Male, 1 m	UNIVERSAL		In Stock	$59

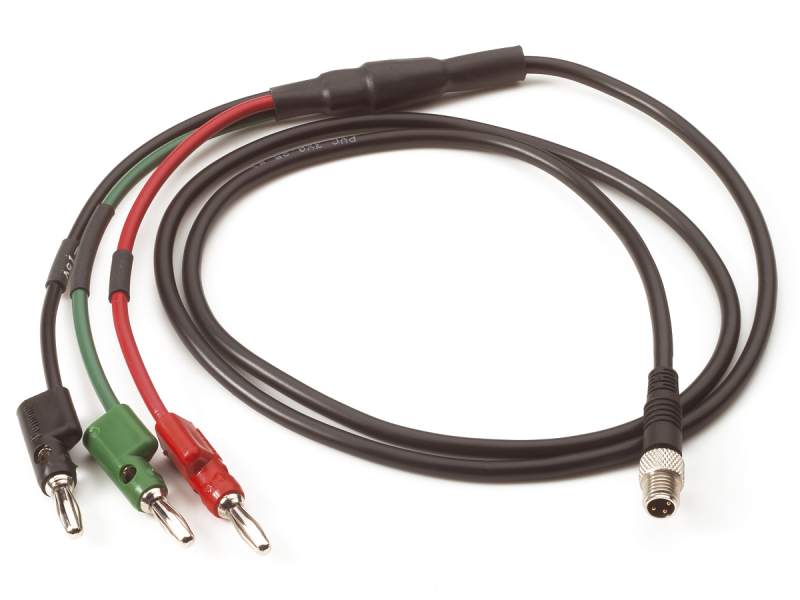

		0924Accessory Cable, Pico (m8) Male to Banana Plug, 1 m	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$103
