Achromatic Zero-Order Quartz-MgF₂ Wave Plate, 1 in, λ/4, 1000-1600 nm

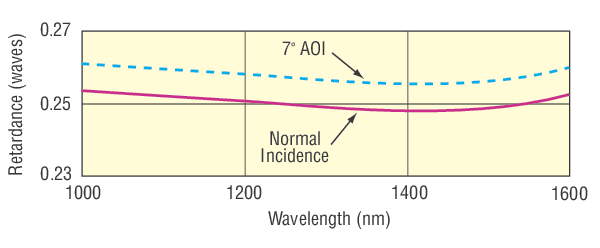

The 10RP54-3 Achromatic Quartz-MgF2 Zero-Order Wave Plate consists of two different birefringent crystals: crystalline quartz and magnesium fluoride (MgF₂). Enclosed in a 1 inch (25.4 mm) housing this 12 mm aperture zero-order wave plate has λ/4 retardation over a 1000 to 1600 nm wavelength range. It has a highly efficient broadband antireflection coating, in an air-spaced design. This construction ensures excellent transmitted wavefront quality, while minimizing beam deviation and surface reflection losses. The assembly is mounted in a black anodized aluminum housing for protection and ease of mounting, with the retarder fast axis marked for alignment reference. Because of the air-space design, our Achromatic Quartz-MgF2 Wave Plates have a higher damage threshold than achromatic polymer film wave plates. Achromatic Quartz-MgF₂ Wave Plates are also less expensive than achromatic polymer film wave plates.
