Achromatic Zero-Order Wave Plate, 25.4 mm, λ/4 Retardation, 545nm

Model: 10RP44-1

Achromatic Zero-Order Wave Plate, 25.4 mm, λ/4 Retardation, 545nm

Model: 10RP44-1

Technical Specs

  • Diameter
    25.4 mm
  • Wavelength Range
    460-644 nm

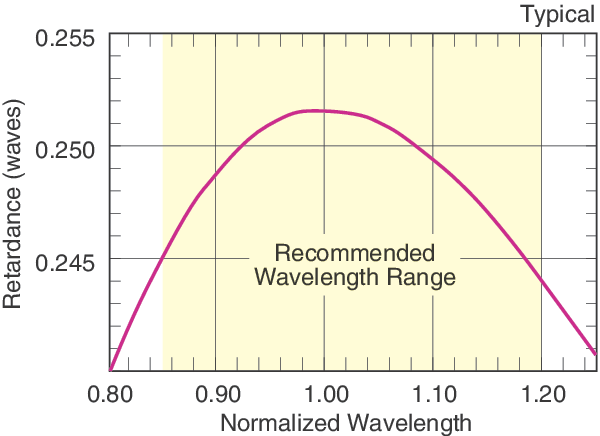

  • Retardation
    λ/4
  • Material
    Grade A N-BK7
  • Clear Aperture
    10.2 mm
  • Housing
    Black anodized aluminum
  • Damage Threshold
    500 W/cm2 CW, 0.3 J/cm2 with 10 nsec pulses, visible, 0.5 J/cm2 with 10 nsec pulses at 1064 nm, typical
  • Reflectivity per Surface
    Broadband, multilayer coating, Ravg <0.5%
  • Surface Quality
    40-20 scratch-dig
  • Diameter Tolerance
    ±0.13 mm
  • Transmitted Beam Deviation
    ≤1 arc min
  • Acceptance Angle
    ± 7°
  • Thickness
    6.0 mm
  • Wavefront Distortion
    ≤λ/4 at 632.8 nm over the full aperture
  • Operating Temperature Range
    -20 to 50 °C
  • Cleaning
    Non-abrasive method, acetone or isopropyl alcoholon lens tissue recommended
  • Retardation Accuracy
    ±λ/100

Resources & Downloads

2D / 3D CAD Software
Drawings And Cad

Achromatic Zero-Order Wave Plate, 25.4 mm, λ/4 Retardation, 545nm

Model: 10RP44-1

$1,449.00
In Stock
