These laser line mirrors are highly efficient reflectors optimized for a narrow wavelength range. Each achieves greater than 99% reflectance, from 0-45° angle of incidence, for any polarization. The Zerodur substrate offers a nominally zero thermal expansion.
Durable dielectric laser line coatings from VIS to NIR
Zerodur® is a unique glass-ceramic material with a nearly zero coefficient of thermal expansion and excellent homogeneity of this coefficient throughout its entire piece. It is the best choice when extreme thermal stability is required or for environments with large temperature fluctuations. For more information, please see our Optical Materials technical note.

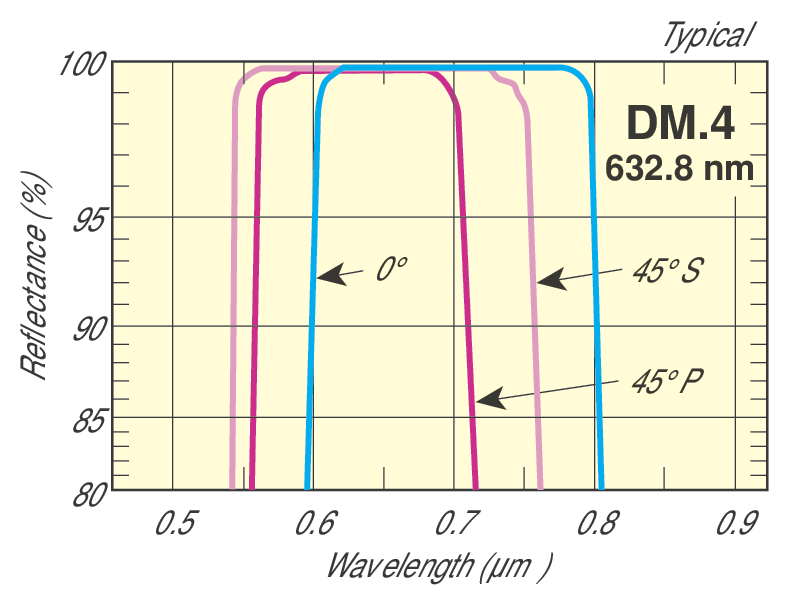

632.8 nm HeNe Laser Line Coating
Our DM.4 multilayer dielectric coating is optimized for 632.8 nm HeNe laser line applications. It offers greater than 99% efficiency for s-polarization or p-polarization at 0-45° angle of incidence.

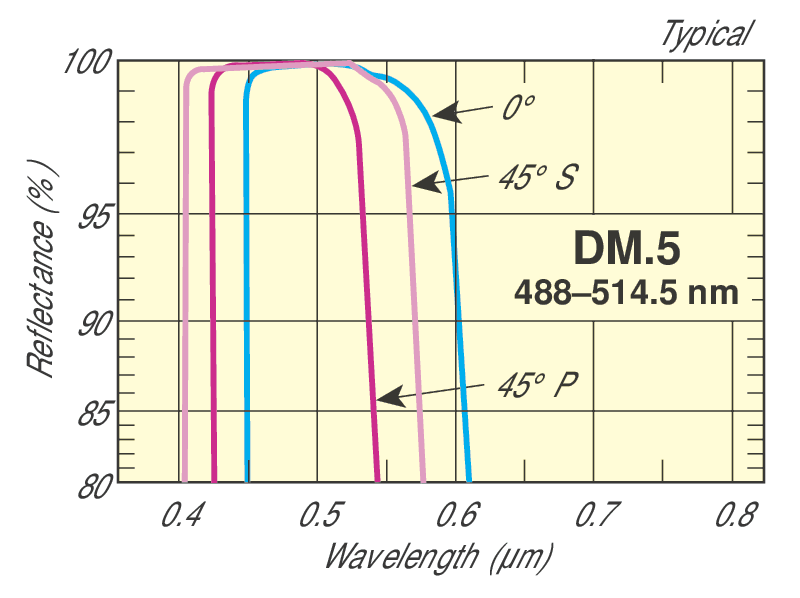

488/514.5 nm Argon-Ion Laser Line Coating
Our DM.5 multilayer dielectric coating is optimized for the 488 nm and 514.5 nm Argon-Ion laser lines. It offers greater than 99% efficiency for s-polarization or p-polarization at 0-45° angle of incidence.

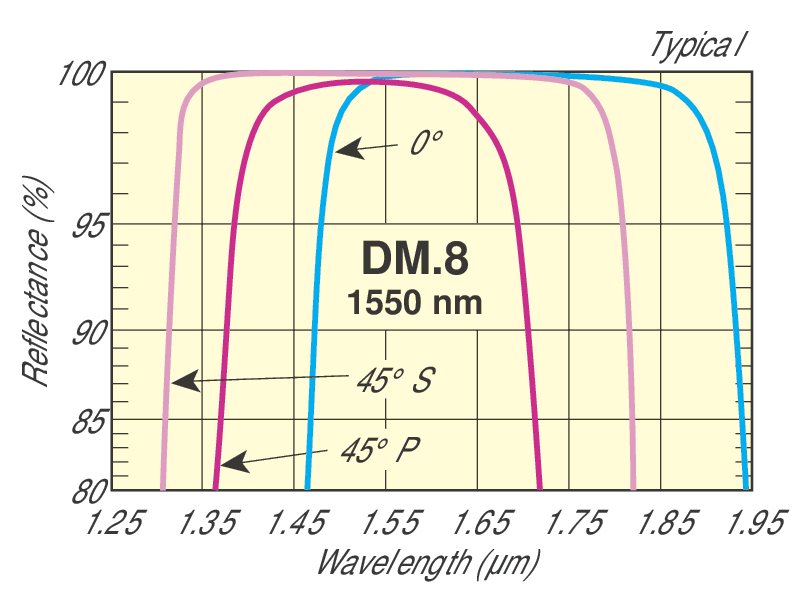

1550 nm Diode Laser Line Coating
Our DM.8 multilayer dielectric coating is optimized for diode lasers operating in the 1520-1580 nm range. It offers greater than 99% efficiency for s-polarization or p-polarization at 0-45° angle of incidence.
532 nm ND:YAG
Our DM.11 multilayer dielectric coating is optimized for the 2nd harmonic 532 nm ND:YAG laser line. It offers greater than 99% efficiency for s-polarization or p-polarization at 0-45° angle of incidence.
1064 nm ND:YAG
Our DM.10 multilayer dielectric coating is optimized for the 1064 nm fundamental harmonic ND:YAG laser line. It offers greater than 99% efficiency for s-polarization or p-polarization at 0-45° angle of incidence.
