Dielectric Mirror, Laser Line, Zerodur, 25.4 mm, λ/10, 1030-1090nm

The 10Z20DM.10 Laser Line Dielectric mirror is a highly efficient reflector optimized for a narrow 1030 to 1090 nm wavelength range. This 1 inch (25.4 mm) diameter mirror is made from a 6.0 mm thick Zerodur substrate. Zerodur is a glass-ceramic material where thermal expansion is nominally zero. This extra stability can be critical for applications requiring diffraction limited performance. The DM.10 coating is designed for use with low-power Nd:YAG lasers and has a center wavelength of 1064 nm. The coating achieves greater than 99% reflectance, from 0–45° angle of incidence, for any polarization. This multilayer dielectric coating is extremely durable, making it resistant to damage from repeated cleaning. This mirror has a λ/10 surface flatness and a 15-5 surface quality.

Specifications

Technical Specs

Wavelength Region
IR
Wavelength Range
1030-1090 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
Zerodur^® or equivalent
Coating Type
Laser Line Dielectric
Coating Code
DM.10
Reflectivity

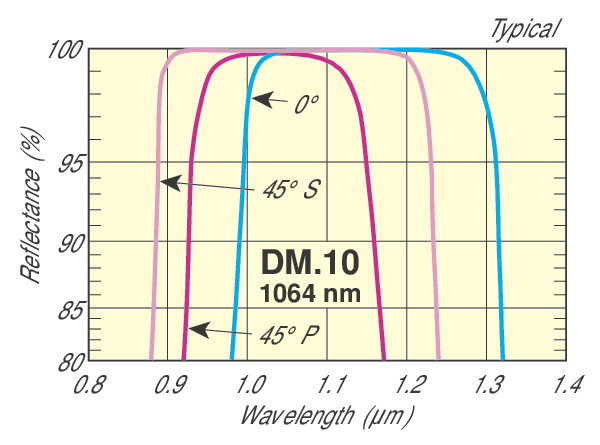

R_s,R_p>99% @ 1030-1090 nm
Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
10Z20
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Thickness
6.0 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.13 mm
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
Damage Threshold
500 W/cm² CW, 4 J/cm² for 10 nsec pulses @ 1064 nm

Wavelength Region
IR
Wavelength Range
1030-1090 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
Zerodur^® or equivalent
Coating Type
Laser Line Dielectric
Coating Code
DM.10
Reflectivity
R_s,R_p>99% @ 1030-1090 nm
Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
10Z20
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Thickness
6.0 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.13 mm
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
Damage Threshold
500 W/cm² CW, 4 J/cm² for 10 nsec pulses @ 1064 nm

Resources & Downloads

Other

10Z20DM.10 RoHS Certificate(705.2 kB, PDF)
DM.10 Raw Data.xlsx(66.8 kB, XLSX)

2D Product Drawings

Laser Line Dielectric Mirror Drawing(102.9 kB, PDF)
