Compare Model Drawings, CAD & Specs Operating Wavelength Fiber Length Fiber Connector Numerical Aperture Core Diameter Availability Price
F-SA-C-10FC
$255.00
F-SA-C-10FC 488/633 nm 10 m FC/UPC 0.10-0.14 3.4 µm $255.00
F-SA-C-1FC
$90.00
F-SA-C-1FC 488/633 nm 1 m FC/UPC 0.10-0.14 3.4 µm $90.00
F-SA-C-3FC
$130.00
F-SA-C-3FC 488/633 nm 3 m FC/UPC 0.10-0.14 3.4 µm $130.00
F-SA-C-3FCA
$120.00
F-SA-C-3FCA 488/633 nm 3 m FC/APC 0.10-0.14 3.4 µm $120.00
F-SA-C-5FC
$160.00
F-SA-C-5FC 488/633 nm 5 m FC/UPC 0.10-0.14 3.4 µm $160.00
F-SBC-C-1FC
$80.00
F-SBC-C-1FC 1310/1550 nm 1 m FC/UPC 0.16 $80.00
F-SC-C-3FC
$95.00
F-SC-C-3FC 980/1550 nm 3 m FC/UPC 0.17-0.19 4.5/7.5 µm $95.00
F-SE-C-1FC
$90.00
F-SE-C-1FC 780 nm 1 m FC/UPC 0.10-0.14 5.4 µm $90.00
F-SE-C-1FCA
$90.00
F-SE-C-1FCA 780 nm 1 m FC/APC 0.10-0.14 5.4 µm $90.00
F-SE-C-3FCA
$115.00
F-SE-C-3FCA 780 nm 3 m FC/APC 0.10-0.14 5.4 µm $115.00
F-SF-C-1FC
$90.00
F-SF-C-1FC 820 nm 1 m FC/UPC 0.10-0.14 5.7 µm $90.00
F-SF-C-1FCA
$95.00
F-SF-C-1FCA 820 nm 1 m FC/APC 0.10-0.14 5.7 µm $95.00
F-SF-C-3FC
$125.00
F-SF-C-3FC 820 nm 3 m FC/UPC 0.10-0.14 5.7 µm $125.00
F-SF-C-3FCA
$110.00
F-SF-C-3FCA 820 nm 3 m FC/APC 0.10-0.14 5.7 µm $110.00
F-SF-C-5FC
$130.00
F-SF-C-5FC 820 nm 5 m FC/UPC 0.10-0.14 5.7 µm $130.00
F-SM-300-SC-C-2FCA
$180.00
F-SM-300-SC-C-2FCA 320 - 430 nm 2 m FC/APC 0.10-0.14 $180.00
F-SM-300-SC-C-3FC
$175.00
F-SM-300-SC-C-3FC 320 - 430 nm 3 m FC/UPC 0.10-0.14 $175.00
F-SMF-28-C-10FCA
$115.00
F-SMF-28-C-10FCA 1310/1550 nm 10 m FC/APC 0.14 8.2 µm $115.00
F-SMF-28-C-1FC
$24.00
F-SMF-28-C-1FC 1310/1550 nm 1 m FC/UPC 0.14 8.2 µm $24.00
F-SMF-28-C-1FCA
$95.00
F-SMF-28-C-1FCA 1310/1550 nm 1 m FC/APC 0.14 8.2 µm $95.00
F-SMF-28-C-1ST
$12.50
F-SMF-28-C-1ST 1310/1550 nm 1 m ST/UPC 0.14 8.2 µm $12.50
F-SMF-28-C-3FC
$24.00
F-SMF-28-C-3FC 1310/1550 nm 3 m FC/UPC 0.14 8.2 µm $24.00
F-SMF-28-C-3FCA
$90.00
F-SMF-28-C-3FCA 1310/1550 nm 3 m FC/APC 0.14 8.2 µm $90.00
F-SMF-28-C-3ST
$25.00
F-SMF-28-C-3ST 1310/1550 nm 3 m ST/UPC 0.14 8.2 µm $25.00
F-SV-C-1FC
$95.00
F-SV-C-1FC 633 nm 1 m FC/UPC 0.10-0.14 4.3 µm $95.00
F-SV-C-1FCA
$95.00
F-SV-C-1FCA 633 nm 1 m FC/APC 0.10-0.14 4.3 µm $95.00
F-SV-C-3FC
$110.00
F-SV-C-3FC 633 nm 3 m FC/UPC 0.10-0.14 4.3 µm $110.00
F-SV-C-3FCA
$115.00
F-SV-C-3FCA 633 nm 3 m FC/APC 0.10-0.14 4.3 µm $115.00
F-SV-C-5FC
$150.00
F-SV-C-5FC 633 nm 5 m FC/UPC 0.10-0.14 4.3 µm $150.00
F-SY-C-1FC
$90.00
F-SY-C-1FC 980-1550 nm 1 m FC/UPC 0.13-0.15 5.8 µm $90.00
F-SY-C-3FC
$115.00
F-SY-C-3FC 980-1550 nm 3 m FC/UPC 0.13-0.15 5.8 µm $115.00

Specifications

  • Index Profile
    Step
    (F-SM-300: Depressed-clad)
  • Fiber Type
    Singlemode
  • Fiber Jacket
    Yes
  • Mode Field Diameter, Nominal
    See product page
  • Cladding Diameter
    125 ±1 µm
    (F-SBC-C: ±2 µm)
  • Coating Diameter
    245 µm
    See product page for tolerance
  • Cable Diameter
    2.5 mm
    (F-SMF-28: 3.0 mm)
  • Cut-off Wavelength
    See product page
  • Buffer Coating Material
    Dual Acrylate
  • Proof Test
    100 kpsi

Features

Fiber Construction

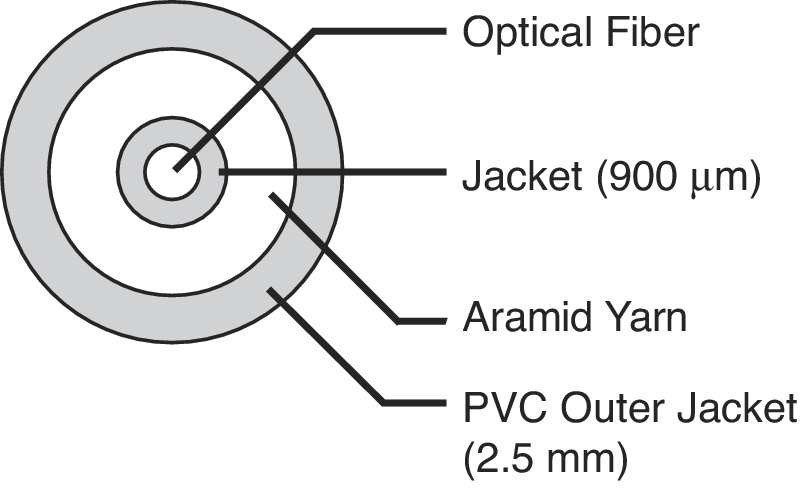

Our standard patch cables are available in several different lengths and connector types. These fibers have a 900 µm jacket surrounded by a layer of Aramid yarn for extra protection. A 2.5 mm PVC cable jacket provides additional environmental protection.

Custom Singlemode Patch Cables

Use Model Number F-PATCH-CUSTOM to configure a custom fiber-optic patch cord using these fibers. You can specify the fiber type, length, jacketing, and input and output connectors.

Excellent Performance

Our Standard Patch Cables exhibit low attenuation while utilizing step-index fibers and also have a uniform core refractive index and a matched-clad profile.

Popular Versions Available Off-the-shelf

We carry many standard fiber optic patch cables available off-the-shelf for operating wavelengths of near UV 300, visible 488/514, 633, infrared 780, 820, 980, 1060 or 1300/1550 nm. If there is not a standard patch cable available for your application, please try our custom patch cable configurator: F-PATCH-CUSTOM

Applications

  • Sensors
  • Instrumentation
  • Device pigtailing
  • Light delivery
