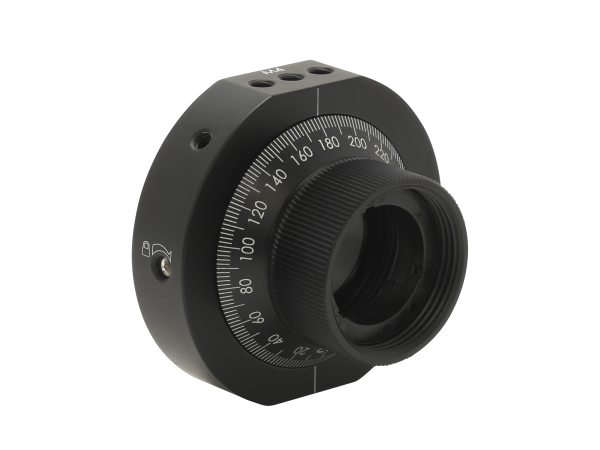

Our manual polarizer rotation mounts offer smooth rotation of 1.0 inch diameter polarizing optics over a full 360° making them suitable for most standard optical systems.
Precisely rotate 1.0 diameter polarizers or wave plates
Continuous 360° rotation with scale markings
Optics are held securely in place with retaining rings
Additional CAD file downloads are not available for this product.
polarizer-rotation-mount - Drawings
Additional drawings are not available for this product.
Specifications
Optic Diameter
1 inch (25.4 mm)
Angular Range
360°
Drive Type
Hand Rotated
Graduations
2°
Sensitivity
1°
Optic Thickness
12.7 mm
Clear Aperture
19 mm
Thread Type
8-32 and M4
Retaining Ring
A-1.25-1RR (2 Included)
Retaining Ring Thread
1.063-20
Features
Lockable 360° Rotation

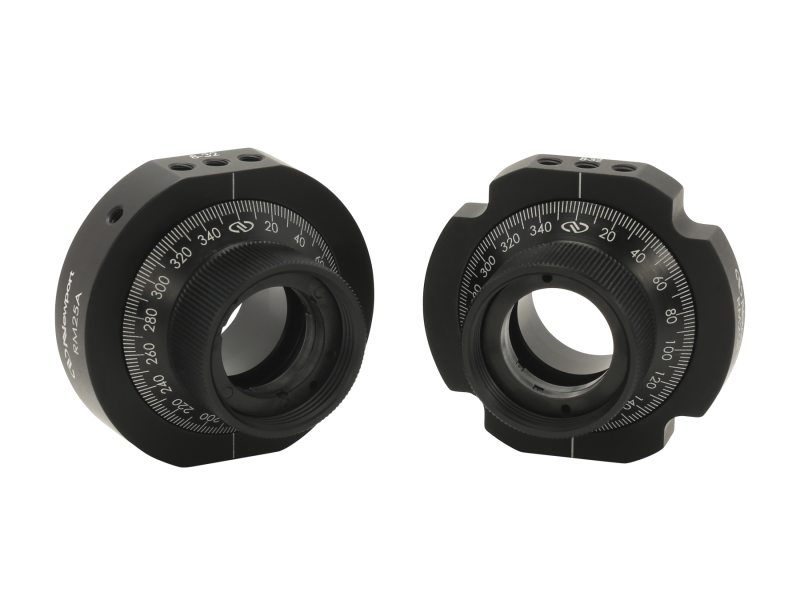

RM25 Optic Rotation Mounts are designed for 1.0 in. (25.4 mm) diameter polarizers and waveplates and feature a graduated scale marked in 2° increments to indicate angular position. Angular adjustment is controlled by rotating the barrel directly and can be locked in place with a set screw on the side. Three tapped holes per side permit direct integration with either imperial or metric optical system as well as secure mounting in industrial OEM applications.
Versatile Optic Mounting

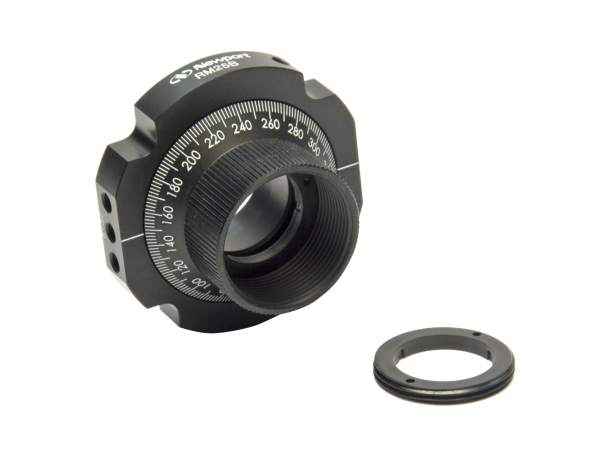

RM25 Optic Rotation Mounts feature extra deep mounting barrel to hold 1.0 in. diameter optic such as waveplates and polarizers up to 0.5 in. thick with included retaining rings. Additionally, a variety of other optic in compatible adapter or holder can directly thread into the central 1.063''-20 aperture, for example, 0.5 in. optic in PRA-05 adapter, 0.5 in. beamsplitting cube in CH-0.5 holder, and Glan-Laser Calcite Polarizers such as 10GL08.
Compatible with 1 inch Mirror Mounts

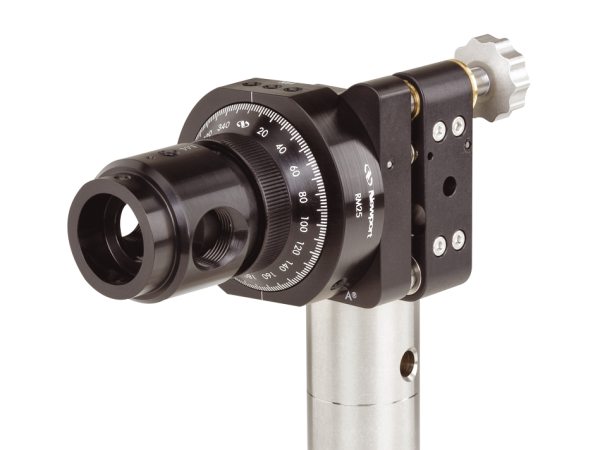

The 1 inch diameter rear flange on both RM25A and RM25B can be mounted to a variety of standard 1 inch mirror mounts such as U100 ULTIMA® for precision tip/tilt and rotation.
Compatible with Cage System

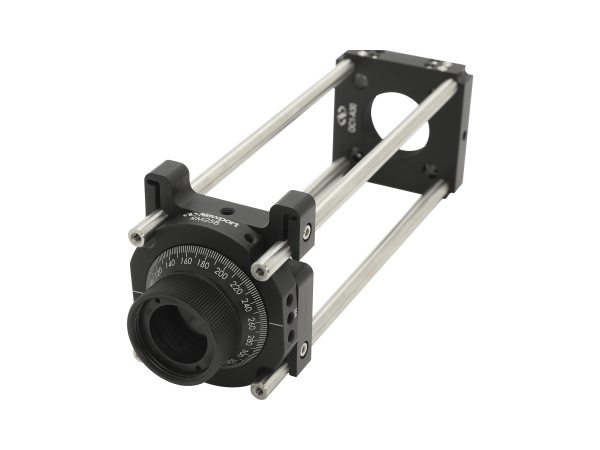

The RM25B Optic Rotation Mount has special cutouts in its frame making it compatible with Newport's OpticsCage+™ Optical Cage system when mounted to OC1-DB cage mount.
Accessories
Compatible Adaptors
Compare
Description
Compatibility
Drawings, CAD & Specs
Avail.
Price
CH-0.5Cube Beamsplitter Holder, 0.5 in. Cubes, 1.063-20 Threaded Mounts
UNIVERSAL
In Stock
$166.00
PRA-05Polarizer Adaptor, 12.7 mm Optics to 1.063-20 Threaded Mounts
