Compare Model Drawings, CAD & Specs Mounting Hole Type Width Length Thickness Working Surface Height Availability Price
Optical Table System, Rigid, SmartTable® UT2, 3 x 6 ft., 8 in. Thick
$7,014
1/4-20 3 ft. 6 ft. 8 in. 36.7 ±0.5 in.
Optical Table System, Rigid, SmartTable® UT2, 3 x 8 ft., 8 in. Thick
$7,736
1/4-20 3 ft. 8 ft. 8 in. 36.7 ±0.5 in.
Optical Table System, Rigid, SmartTable® UT2, 4 x 6 ft., 8 in. Thick
$7,555
1/4-20 4 ft. 6 ft. 8 in. 36.7 ±0.5 in.
Optical Table System, Rigid, SmartTable® UT2, 4 x 8 ft., 8 in. Thick
$8,648
1/4-20 4 ft. 8 ft. 8 in. 36.7 ±0.5 in.
Optical Table System, Rigid, SmartTable® UT2, 4 x 8 ft., 12 in. Thick
$9,200
1/4-20 4 ft. 8 ft. 12 in. 40.7 ±0.5 in.
Optical Table System, Rigid, SmartTable® UT2, 4 x 10 ft., 8 in. Thick
$9,785
1/4-20 4 ft. 10 ft. 8 in. 36.7 ±0.5 in.
Optical Table System, Rigid, SmartTable® UT2, 4 x 10 ft., 12 in. Thick
$10,314
1/4-20 4 ft. 10 ft. 12 in. 40.7 ±0.5 in.
Optical Table System, Rigid, SmartTable® UT2, 5 x 6 ft., 8 in. Thick
$8,184
1/4-20 59.06 in. 6 ft. 8 in. 36.7 ±0.5 in.
Optical Table System, Rigid, SmartTable® UT2, 5 x 6 ft., 12 in. Thick
$8,962
1/4-20 59.06 in. 6 ft. 12 in. 40.7 ±0.5 in.
Optical Table System, Rigid, SmartTable® UT2, 5 x 10 ft., 8 in. Thick
$11,122
1/4-20 59.06 in. 10 ft. 8 in. 36.7 ±0.5 in.
Optical Table System, Rigid, SmartTable® UT2, 5 x 10 ft., 12 in. Thick
$11,928
1/4-20 59.06 in. 10 ft. 12 in. 40.7 ±0.5 in.
Optical Table System, Rigid, SmartTable® UT2, 900 x 1800 mm, 203 mm, M6
$7,014
M6 900 mm 1800 mm 203 mm 932 ±12.5 mm
Optical Table System, Rigid, SmartTable® UT2, 900 x 2400 mm, 203 mm, M6
$7,736
M6 900 mm 2400 mm 203 mm 932 ±12.5 mm
Optical Table System, Rigid, SmartTable® UT2, 1200 x 1800 mm, 203 mm, M6
$7,555
M6 1200 mm 1800 mm 203 mm 932 ±12.5 mm
Optical Table System, Rigid, SmartTable® UT2, 1200 x 2400 mm, 203 mm, M6
$8,648
M6 1200 mm 2400 mm 203 mm 932 ±12.5 mm
Optical Table System, Rigid, SmartTable® UT2, 1200 x 2400 mm, 305 mm, M6
$9,200
M6 1200 mm 2400 mm 305 mm 1034 ±12.5 mm
Optical Table System, Rigid, SmartTable® UT2, 1200 x 3000 mm, 203 mm, M6
$9,785
M6 1200 mm 3000 mm 203 mm 932 ±12.5 mm
Optical Table System, Rigid, SmartTable® UT2, 1200 x 3000 mm, 305 mm, M6
$10,314
M6 1200 mm 3000 mm 305 mm 1034 ±12.5 mm
Optical Table System, Rigid, SmartTable® UT2, 1500 x 1800 mm, 203 mm, M6
$8,184
M6 1500 mm 1800 mm 203 mm 932 ±12.5 mm
Optical Table System, Rigid, SmartTable® UT2, 1500 x 1800 mm, 305 mm, M6
$8,962
M6 1500 mm 1800 mm 305 mm 1034 ±12.5 mm
Optical Table System, Rigid, SmartTable® UT2, 1500 x 3000 mm, 203 mm, M6
$11,122
M6 1500 mm 3000 mm 203 mm 932 ±12.5 mm
Optical Table System, Rigid, SmartTable® UT2, 1500 x 3000 mm, 305 mm, M6
$11,928
M6 1500 mm 3000 mm 305 mm 1034 ±12.5 mm
Optical Table System, SmartTable® UT2, 1200 x 1800 mm, 203 mm, Rigid, M6, Reduced Height
$7,555
M6 1200 mm 1800 mm 203 mm 698.3 ±12.5 mm
Optical Table System, SmartTable® UT2, 1200 x 2400 mm, 203 mm, Rigid, M6, Reduced Height
$8,648
M6 1200 mm 2400 mm 203 mm 698.3 ±12.5 mm
Optical Table System, SmartTable® UT2, 1200 x 2400 mm, 305 mm, Rigid, M6, Reduced Height
$9,200
M6 1200 mm 2400 mm 305 mm 800.3 ±12.5 mm
Optical Table System, SmartTable® UT2, 1200 x 3000 mm, 203 mm, Rigid, M6, Reduced Height
$9,785
M6 1200 mm 3000 mm 203 mm 698.3 ±12.5 mm
Optical Table System, SmartTable® UT2, 1200 x 3000 mm, 305 mm, Rigid, M6, Reduced Height
$10,314
M6 1200 mm 3000 mm 305 mm 800.3 ±12.5 mm
Optical Table System, SmartTable® UT2, 1500 x 3000 mm, 203 mm, Rigid, M6, Reduced Height
$11,122
M6 1500 mm 3000 mm 203 mm 698.3 ±12.5 mm
Optical Table System, SmartTable® UT2, 1500 x 3000 mm, 305 mm, Rigid, M6, Reduced Height
$11,928
M6 1500 mm 3000 mm 305 mm 800.3 ±12.5 mm

For SmartTable OTS-UT2 table system with pre-installed pneumatic isolators, click here

Specifications

  • Type

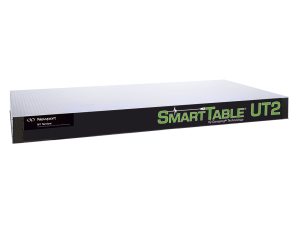

    SmartTable OTS-UT2 Optical Table System
  • Tuned Damping
    Two Precision Tuned Dampers
  • Active Damping
    Upgradable to Active Damping
  • Broadband Damping

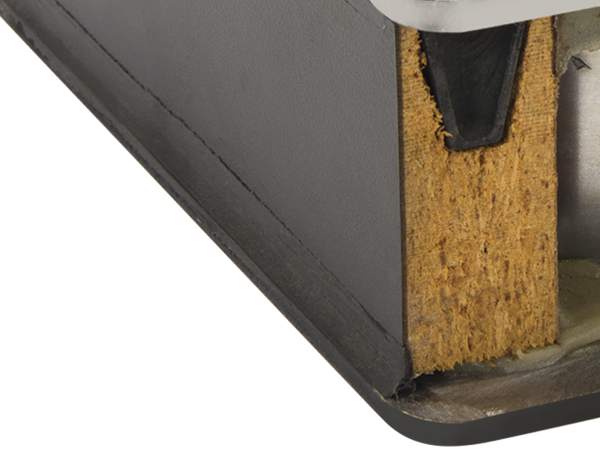

    Constrained layer core, damped working surface and composite edge finish
  • Optical Table Supports
    Rigid Support Legs - Upgradable to Pneumatic Isolation
  • Working Surface Height
    36.7 ±0.5 in. (8 in. Thick Tables)
    40.7 ±0.5 in. (12 in. Thick Tables)
  • Working Surface
    4.8 mm thick ferromagnetic 430 stainless steel
  • Surface Flatness
    ±0.004 in. (0.1 mm) over 2 ft. (600 mm) square
  • Mounting Hole Type
    1/4-20
    M6 (M- Versions)
  • Mounting Hole Pattern
    1.0 in. grid
    25 mm grid (M- Versions)
  • Mounting Hole Borders
    0.5 in.
    12.5 mm (M- Versions)
  • Alphanumeric Grid Labels
    Yes
  • Hole Sealing Type
    Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
  • Core Design
    Trussed honeycomb, vertically bonded closed cell construction, 0.010 in. steel sheet materials, 0.030 in. triple core interface
  • Bottom Skin Material
    4.8 mm thick carbon steel
