Modular Riser Plates

Products
Features
Contact Us

Overview

Modular Riser Plates mount to optical tables and breadboards to incrementally raise the mounting surface for components to a new, fixed height. Riser plates are stackable, available in four heights, and each of the two surface areas offered feature a full array of either 1/4-20 or M6 mounting or through holes.

Raise and securely mount components at a fixed height
Stack to achieve any height in 0.125 in. increments
Aids in establishing a common optical axis height
Aluminum with a black anodized surface finish construction

See All Features

Products

Compare	Model	Compatibility	rankScore		Height	Length	Width	Availability	Price	Brand
MRP3-0.125 Modular Riser Plates, 3 in. x 3 in. x 0.125 in., 1/4-20 Thread $56 In Stock	MRP3-0.125 Modular Riser Plates, 3 in. x 3 in. x 0.125 in., 1/4-20 Thread	IMPERIAL	1.0	1.0	3.175 mm	76.2 mm	76.2 mm	In Stock	$56	Newport
MRP3-0.25 Modular Riser Plates, 3 in. x 3 in. x 0.25 in., 1/4-20 Thread $90 In Stock	MRP3-0.25 Modular Riser Plates, 3 in. x 3 in. x 0.25 in., 1/4-20 Thread	IMPERIAL	1.0	2.0	6.35 mm	76.2 mm	76.2 mm	In Stock	$90	Newport
MRP3-0.5 Modular Riser Plates, 3 in. x 3 in. x 0.5 in., 1/4-20 Thread $103 2 Weeks	MRP3-0.5 Modular Riser Plates, 3 in. x 3 in. x 0.5 in., 1/4-20 Thread	IMPERIAL	1.0	3.0	12.7 mm	76.2 mm	76.2 mm	2 Weeks	$103	Newport
MRP3-1 Modular Riser Plates, 3 in. x 3 in. x 1 in., 1/4-20 Thread $125 In Stock	MRP3-1 Modular Riser Plates, 3 in. x 3 in. x 1 in., 1/4-20 Thread	IMPERIAL	1.0	4.0	25.4 mm	76.2 mm	76.2 mm	In Stock	$125	Newport
MRP4-0.125 Modular Riser Plates, 4 in. x 4 in. x 0.125 in., 1/4-20 Thread $84 In Stock	MRP4-0.125 Modular Riser Plates, 4 in. x 4 in. x 0.125 in., 1/4-20 Thread	IMPERIAL	1.0	5.0	3.175 mm	101.6 mm	101.6 mm	In Stock	$84	Newport
MRP4-0.25 Modular Riser Plates, 4 in. x 4 in. x 0.25 in., 1/4-20 Thread $103 In Stock	MRP4-0.25 Modular Riser Plates, 4 in. x 4 in. x 0.25 in., 1/4-20 Thread	IMPERIAL	1.0	6.0	6.35 mm	101.6 mm	101.6 mm	In Stock	$103	Newport
MRP4-0.5 Modular Riser Plates, 4 in. x 4 in. x 0.5 in., 1/4-20 Thread $118 In Stock	MRP4-0.5 Modular Riser Plates, 4 in. x 4 in. x 0.5 in., 1/4-20 Thread	IMPERIAL	1.0	7.0	12.7 mm	101.6 mm	101.6 mm	In Stock	$118	Newport
MRP4-1 Modular Riser Plates, 4 in. x 4 in. x 1 in., 1/4-20 Thread $125 In Stock	MRP4-1 Modular Riser Plates, 4 in. x 4 in. x 1 in., 1/4-20 Thread	IMPERIAL	1.0	8.0	25.4 mm	101.6 mm	101.6 mm	In Stock	$125	Newport
M-MRP3-0.125 Modular Riser Plates, 76.2 mm x 76.2 mm x 3.175 mm, M6 Thread, Metric $56 In Stock	M-MRP3-0.125 Modular Riser Plates, 76.2 mm x 76.2 mm x 3.175 mm, M6 Thread, Metric	METRIC	1.0	9.0	3.175 mm	76.2 mm	76.2 mm	In Stock	$56	Newport

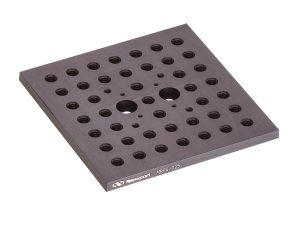

M-MRP3-0.25 Modular Riser Plates, 76.2 mm x 76.2 mm x 6.35 mm, M6 Thread, Metric $90 In Stock	M-MRP3-0.25 Modular Riser Plates, 76.2 mm x 76.2 mm x 6.35 mm, M6 Thread, Metric	METRIC	1.0	10.0	6.35 mm	76.2 mm	76.2 mm	In Stock	$90	Newport

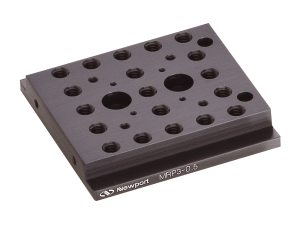

M-MRP3-0.5 Modular Riser Plates, 76.2 mm x 76.2 mm x 12.7 mm, M6 Thread, Metric $103 In Stock	M-MRP3-0.5 Modular Riser Plates, 76.2 mm x 76.2 mm x 12.7 mm, M6 Thread, Metric	METRIC	1.0	11.0	12.7 mm	76.2 mm	76.2 mm	In Stock	$103	Newport

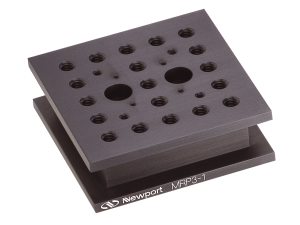

M-MRP3-1 Modular Riser Plates, 76.2 mm x 76.2 mm x 25.4 mm, M6 Thread, Metric $125 In Stock	M-MRP3-1 Modular Riser Plates, 76.2 mm x 76.2 mm x 25.4 mm, M6 Thread, Metric	METRIC	1.0	12.0	25.4 mm	76.2 mm	76.2 mm	In Stock	$125	Newport

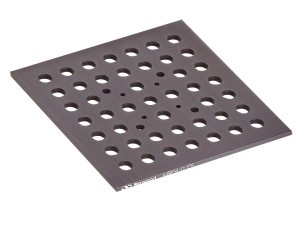

M-MRP4-0.125 Modular Riser Plates, 101.6 mm x 101.6 mm x 3.175 mm, M6 Thread $84 In Stock	M-MRP4-0.125 Modular Riser Plates, 101.6 mm x 101.6 mm x 3.175 mm, M6 Thread	METRIC	1.0	13.0	3.175 mm	101.6 mm	101.6 mm	In Stock	$84	Newport
M-MRP4-0.25 Modular Riser Plates, 101.6 mm x 101.6 mm x 6.35 mm, M6 Thread, Metric $103 In Stock	M-MRP4-0.25 Modular Riser Plates, 101.6 mm x 101.6 mm x 6.35 mm, M6 Thread, Metric	METRIC	1.0	14.0	6.35 mm	101.6 mm	101.6 mm	In Stock	$103	Newport
M-MRP4-0.5 Modular Riser Plates, 101.6 mm x 101.6 mm x 12.7 mm, M6 Thread, Metric $118 In Stock	M-MRP4-0.5 Modular Riser Plates, 101.6 mm x 101.6 mm x 12.7 mm, M6 Thread, Metric	METRIC	1.0	15.0	12.7 mm	101.6 mm	101.6 mm	In Stock	$118	Newport

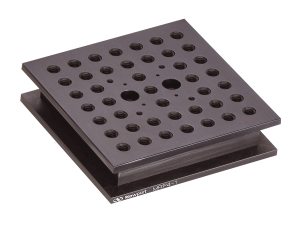

M-MRP4-1 Modular Riser Plates, 101.6 mm x 101.6 mm x 25.4 mm, M6 Thread, Metric $125 In Stock	M-MRP4-1 Modular Riser Plates, 101.6 mm x 101.6 mm x 25.4 mm, M6 Thread, Metric	METRIC	1.0	16.0	25.4 mm	101.6 mm	101.6 mm	In Stock	$125	Newport

Show All

Features

Available in a Variety of Stackable Sizes

Modular Riser Plates are available in four heights and can be stacked to achieve any height in 0.125 in. (3.175 mm) increments. For each height, risers are offered with a mounting area of either 3.0 in x 3.0 in (76.2 mm x 76.2 mm) or 4.0 in. x 4.0 in. (101.6 mm x 101.6 mm) and feature a full array of 1/4-20 (M6) threaded and through holes for mounting.

Multiple Surface Mount Options

Through holes on these riser plates can be used to mount plates directly to surfaces, or alternatively can be secured using additional base clamps. The 0.5 in. and 1.0 in. (12.7 mm and 25.4 mm) tall risers include specialized grooves around the base mounting with clamps while maintaining a minimal footprint.
