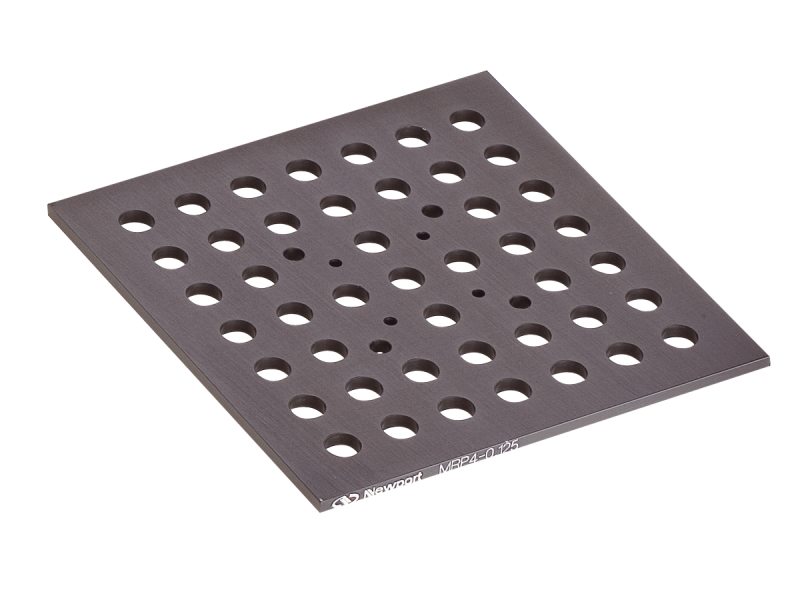

Modular Riser Plates, 4 in. x 4 in. x 0.125 in., 1/4-20 Thread

Model: MRP4-0.125

$84

In Stock

Compare

Add to List

Product Series Overview

Modular Riser Plates

The MRP4-0.125 Modular Riser Plate raises the surface of an optical table, allowing components to be securely mounted at a fixed 0.125 inch height. 4 x 4 inch Modular Riser Plates can be stacked to achieve any height in 0.125 inch (3.175 mm) increments. Ample 1/4-20 threaded holes on the top surface are available to mount components to riser plates. These riser plates can be directly bolted to a table surface or mounted off the hole pattern using base clamps. 0.5 and 1.0 inch (12.7 and 25.4 mm) high versions have a groove around the base for the base clamps.

Specifications

Technical Specs

Type

Riser Plate
Height

3.175 mm
Length

101.6 mm

Width

101.6 mm
Material

Aluminum

Type

Riser Plate
Height

3.175 mm
Length

101.6 mm

Width

101.6 mm
Material

Aluminum

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

MRP4-125-S (137.8 kB, PDF)

Other

MRP4-0.125 RoHS Certificate (279.2 kB, PDF)
MRP4-0-125_RoHS2021.pdf (686.4 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
BB-L Optical Beam Block, Tool Holder, Magnetic-Base, Large	UNIVERSAL	In Stock	$42
PS-0.125 Pedestal Spacer, 0.125 in. Thick, 1 in. Diameter Posts, 8-32 (M4) CLR	UNIVERSAL	In Stock	$10.10
SK-A Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805	UNIVERSAL	3 Weeks	$128
CCL-1 Cable Clamps, Qty 5 Short and 5 Long	UNIVERSAL	In Stock	$48
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38

Similar

Description	Compatibility	Avail.	Price

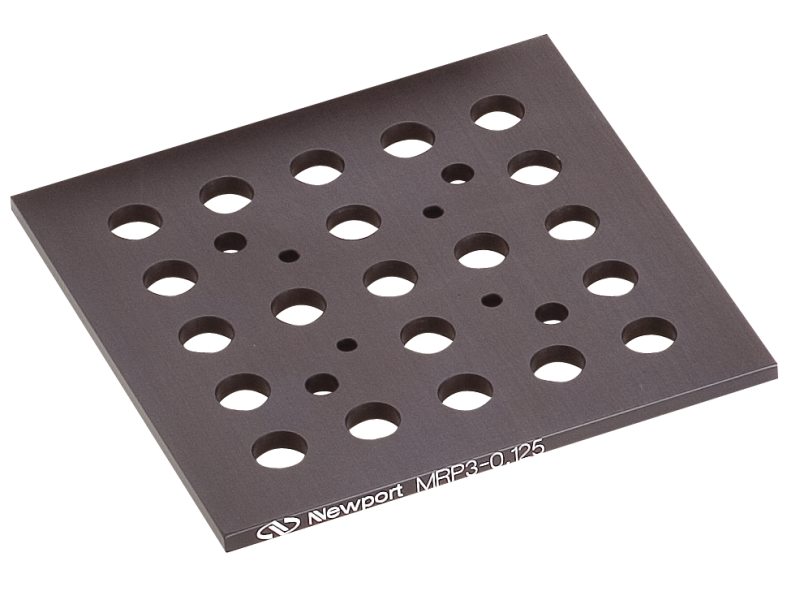

MRP3-0.125 Modular Riser Plates, 3 in. x 3 in. x 0.125 in., 1/4-20 Thread	IMPERIAL	In Stock	$56
