Light Pipe Homogenizer
Light Pipe Homogenizer
A light pipe, sometimes called an integrator rod or waveguide, provides highly uniform or homogenized illumination. Light pipes can be used as homogenizers in illumination systems for microscopes, inspection systems and video metrology systems.
- Provides highly uniform or homogenized illumination
- Square cross section & sharp edges for efficient homogenization
- Safe mounting design allows for manual rotation of light pipe
- Three different sizes available See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

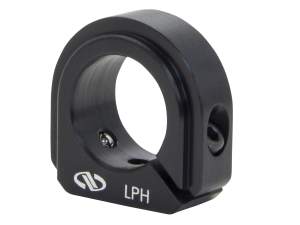

 | LPH-MOUNTPost Mounting Clamp, Light Pipe Homogenizer | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | LPH-COL-4Light Pipe Collet Holder, 50 mm Length | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | LPH-COL-6Light Pipe Collet Holder, 75 mm Length | 2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | LPH-COL-8Light Pipe Collet Holder, 100 mm Length | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

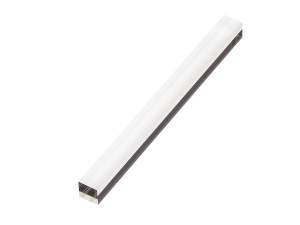

 | LPH-PIP-4Light Pipe Homogenizer, 4 x 4 x 50 mm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

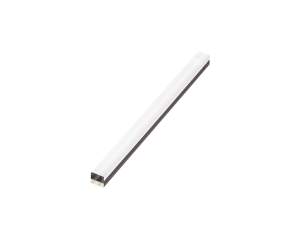

 | LPH-PIP-6Light Pipe Homogenizer, 6 x 6 x 75 mm | 5 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

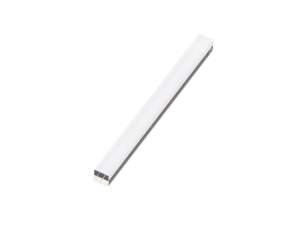

 | LPH-PIP-8Light Pipe Homogenizer, 8 x 8 x 100 mm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Features

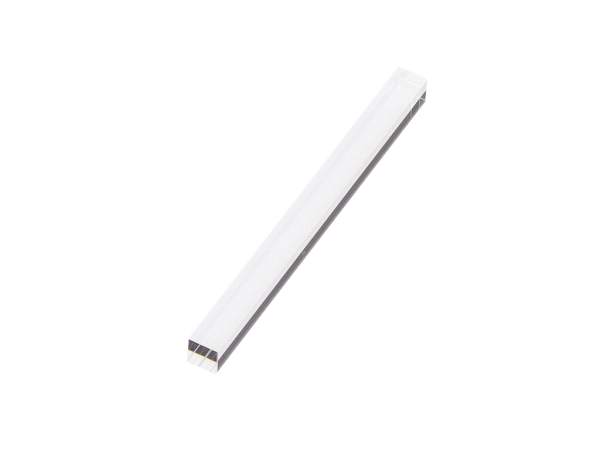

Total Internal Reflection
Through the process of total internal reflection, a light pipe can transform the output of a very non-uniform light source into highly uniform or homogenized illumination. For maximum homogenization efficiency, our light pipes feature square cross sections and very sharp edges with minimal bevel.

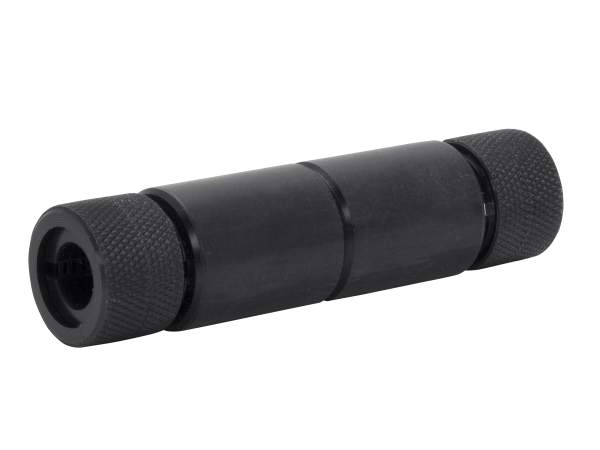

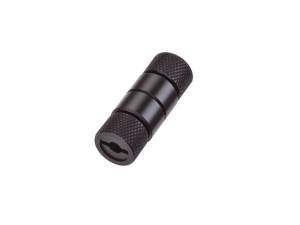

Light Pipe Collets for Safety
Our light pipe holder (collet) makes contact with the light pipe only at the edges and completely covers the sharp edges for safety. When installed in our clamp mount, it can be easily rotated.

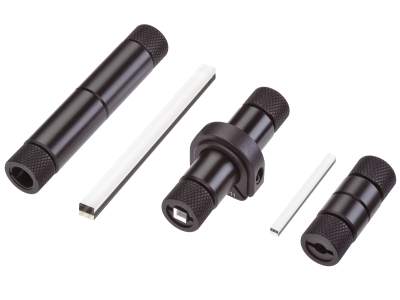

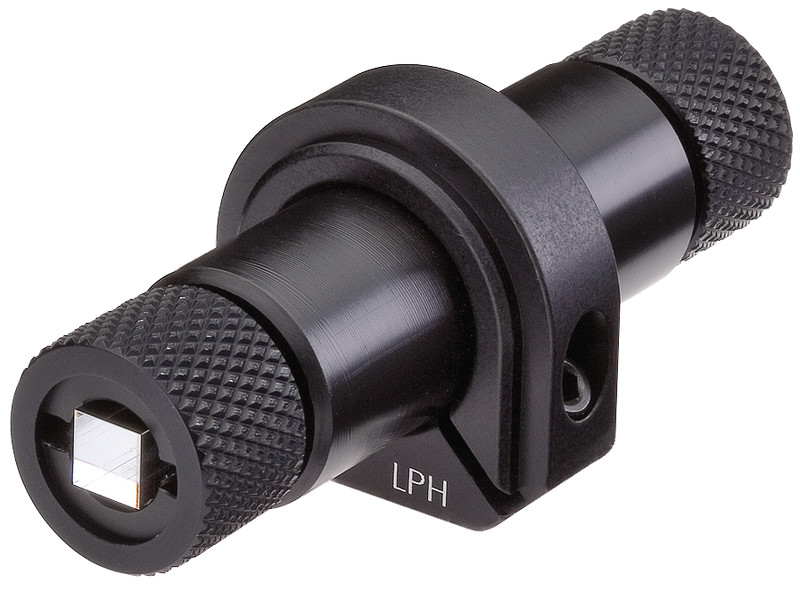

Complete Homogenizer Assembly
A complete light pipe homogenizer assembly can be built with a light pipe, collet and mount. Choose a light pipe and collet with the same length. A 6 inch homogenizer assembly is shown using the LPH-PIP-6, LPH-COL-6, and LPH-MOUNT.
