High Power Infrared and Ultraviolet Sensor Cards
High Power Infrared and Ultraviolet Sensor Cards
Easily locate and analyze high power laser sources in the IR or UV wavelength range with powers up to 10 kW/cm2 with these pocket-sized, low-cost alternatives to IR and UV viewers.
- Wavelength coverage for IR and UV
- High power ratings
- Optical charging is not required See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-IRC-HPIR Sensor Card, High Power, 950-1150 & 1480-1650 nm, 23 x 23 mm | 1 Week FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

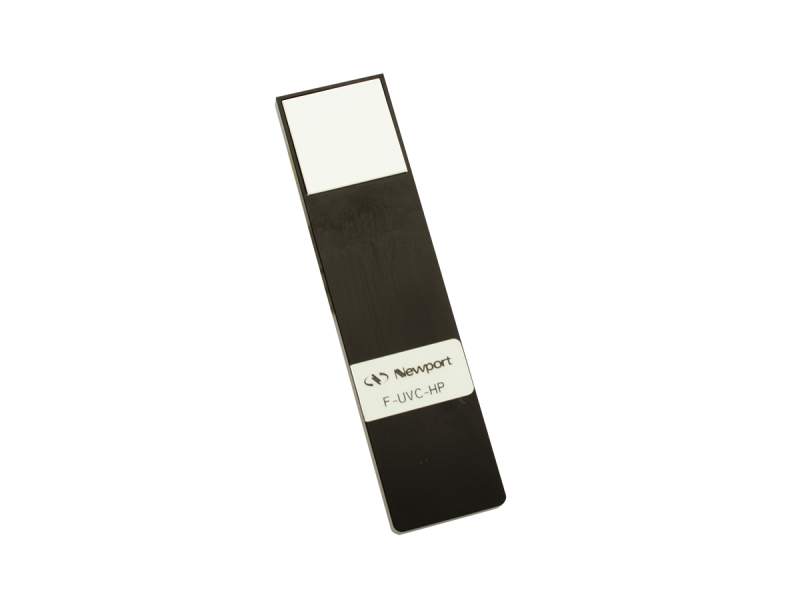

 | F-UVC-HPUV Sensor Card, High Power, 190-390 nm, 23 x 23 mm Active Area (RoHS Pending) | In Stock |
Specifications
| Models | | | |
|---|---|---|---|
| Type | IR Sensor Card | UV Sensor Card | |
| Wavelength Range | 950-1150 and 1480-1650 nm | 190-390 nm | |
| Minimum Detectable Power | <100mW/cm2 (1064nm, CW), <1mJ/cm2 (1064nm, pulsed) | <100mW/cm2 (CW), <10mJ/cm2 (pulsed) | |
| Damage Threshold | >10kW/cm2 (1064nm, CW), >10J/cm2 (1064nm, Q-switched) | >10kW/cm2 (CW), 10J/cm2 (pulsed) | |
| Emission | Green, 530 nm | Red, 660 nm | |
| Sensor Size | 23 x 23 mm | 23 x 23 mm | |
| Dimensions | 25 x 100 mm | 25 x 100 mm | |
| Material | Metal Substrate | Metal Substrate |
Features
IR and UV Wavelength Coverage
These viewing cards contain a smart pigment coated sensor area that changes color when illuminated by mid-IR sources. This allows for the easy location of mid-IR beams and their focal point as well as the visualization of spatial mode patterns. Model F-IRC-HP converts IR radiation from 950-1150 nm and 1480-1650 nm to visible green, while the F-UVC-HP converts UV radiation from 190-390 nm laser to visible red light. Both the IR and UV cards are suitable for cw and pulsed lasers. The 23 x 23 mm active area is located at one end of the 25 x 100 mm anodized Aluminum card for both models. Typical applications include sensing and locating Excimer lasers, Gas lasers and tripled ND:YAG lasers.
High Power Ratings
With maximum CW power density ratings of up to >10 kW/cm2 and pulsed maximum power density ratings of up to >10 J/cm2, these sensor cards are ideal for sensing and locating excimer lasers, gas lasers, and tripled ND:YAG lasers.
Optical Charging Not Required
The cards are always ready to use with no optical charging required, making operation convenient and simple.
