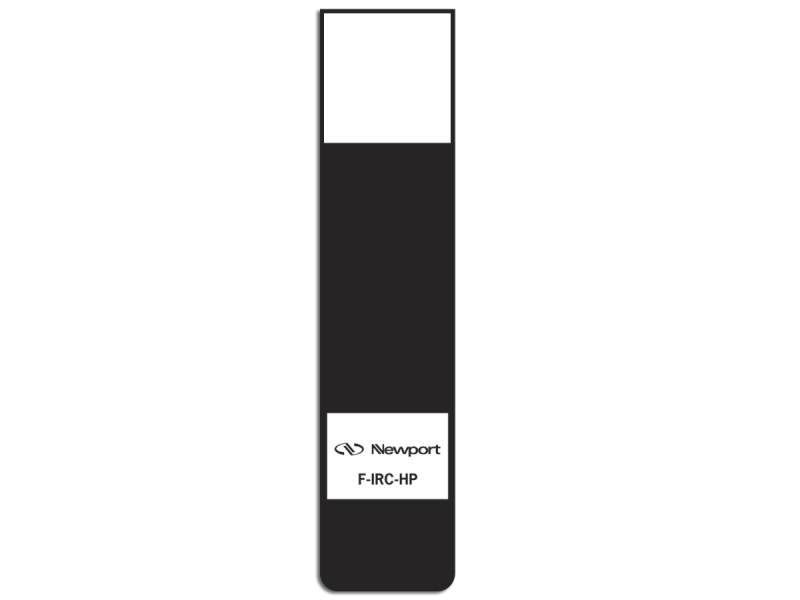

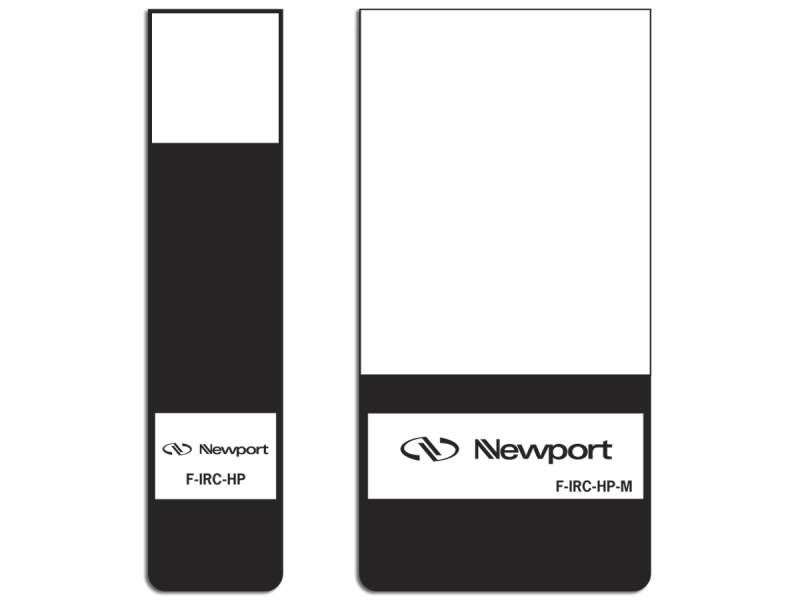

F-IRC-HP IR Sensor Card

IR Sensor Card, High Power, 950-1150 & 1480-1650 nm, 23 x 23 mm

Model: F-IRC-HP

$660.00

In Stock

Compare

Add to List

Product Series Overview

High Power Infrared and Ultraviolet Sensor Cards

Easily locate and analyze high power laser sources up to 10KW/cm² in the infrared (IR) with this High Power Sensor Card. Converts IR radiation from 950-1150 nm and 1480 - 1650 nm to visible green light. Suitable for CW and pulsed lasers with a 23 x 23 mm Sensor Area. Typical applications include sensing and locating Excimer lasers, Gas lasers and ND:YAG lasers at fundamental and harmonic frequencies.

Specifications

Technical Specs

Type

IR Sensor Card
Material

Metal Substrate
Wavelength Range

950-1150 and 1480-1650 nm
Sensor Size

23 x 23 mm
Damage Threshold

>10kW/cm² (1064nm, CW),
>10J/cm² (1064nm, Q-switched)

Minimum Detectable Power

<100mW/cm² (1064nm, CW),
<1mJ/cm² (1064nm, pulsed)
Emission

Green, 530 nm
Dimensions

25 x 100 mm

Type

IR Sensor Card
Material

Metal Substrate
Wavelength Range

950-1150 and 1480-1650 nm
Sensor Size

23 x 23 mm
Damage Threshold

>10kW/cm² (1064nm, CW),
>10J/cm² (1064nm, Q-switched)

Minimum Detectable Power

<100mW/cm² (1064nm, CW),
<1mJ/cm² (1064nm, pulsed)
Emission

Green, 530 nm
Dimensions

25 x 100 mm

Resources & Downloads

Other

F-IRC-HP RoHS Certificate.pdf (221.1 kB, PDF)
