Square Utility Broadband Metallic Mirrors
Square Utility Broadband Metallic Mirrors

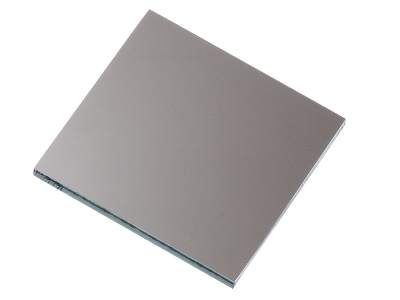

These low cost Float glass square mirrors are excellent broadband mirrors for the price. They can be used as a front or back surface reflector.
- Low cost square Float glass substrates
- Enhanced Aluminum broadband front coating
- Protective plastic sheet on back surface
- Ravg >90%, 400-2000 nm, typical See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 10SJ00ER.3Aluminum Mirror, Float Glass, 25.4 mm Square, 5λ, 400-10,000 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 20SJ00ER.3Aluminum Mirror, Float Glass, 50.8 mm Square, 5λ, 400-10,000 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| 75J00ER.3Aluminum Mirror, Float Glass, 190.5 mm Square, 5λ, 400-10,000 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| 75K00ER.3Aluminum Mirror, Float Glass, 190.5 mm Square, 5λ, 400-10,000 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Notes:

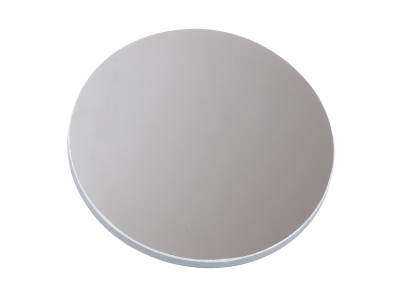

Round mirror is also available.
Specifications
| Models | | | | | |
|---|---|---|---|---|---|
| Wavelength Range | 400-10000 nm | 400-10000 nm | 400-10000 nm | 400-10000 nm | |
| Mirror Size | 25.4 x 25.4 mm | 50.8 x 50.8 mm | 190.5 x 190.5 mm | 190.5 x 190.5 mm | |
| Material | Float Glass | Float Glass | Float Glass | Float Glass | |
| Coating Type | Enhanced Aluminum | Enhanced Aluminum | Enhanced Aluminum | Enhanced Aluminum | |
| Surface Quality | 60-40 scratch-dig | 60-40 scratch-dig | 60-40 scratch-dig | 60-40 scratch-dig | |
| Surface Flatness | 5λ per inch at 632.8 nm | 5λ per inch at 632.8 nm | 5λ per inch at 632.8 nm | 5λ per inch at 632.8 nm | |
| Reflectivity | Ravg>90% @ 400-2000 nm | Ravg>90% @ 400-2000 nm | Ravg>90% @ 400-2000 nm | Ravg>90% @ 400-2000 nm | |
| Back Surface | Polished | Polished | Polished | Polished | |
| Thickness | 3.17 mm | 3.17 mm | 3.17 mm | 5.84 mm | |
| Thickness Tolerance | ±0.76 mm | ±0.76 mm | ±0.76 mm | ±0.51 mm | |
| Size Tolerance | ±0.25 mm | ±0.25 mm | ±0.76 mm | ±0.76 mm | |
| Clear Aperture | >90% of Side Length | >90% of Side Length | >90% of Side Length | >90% of Side Length |
Features
Low Cost Float Glass Substrate
Float glass is made by floating molten glass over a bed of molten metal. While this is a low cost material that is used in commercial windows, the production method yields a very flat surface of uniform thickness making it a good choice for optics.
Back Reflector Applications
These mirrors can be used as a front or back surface reflector. A removable plastic sheet protects the mirror surface during shipment and handling, and can be left on if used as a back surface reflector.
Enhanced Aluminum Broadband Metallic Coating
The front surface is coated with our ER.3 dielectric-enhanced aluminum coating. Average reflectivity is greater than 90% from 400-2000 nm typically.
