Aluminum Mirror, Float Glass, 190.5 mm Square, 5λ, 400-10,000 nm

Float Glass Square Broadband Metallic Mirrors

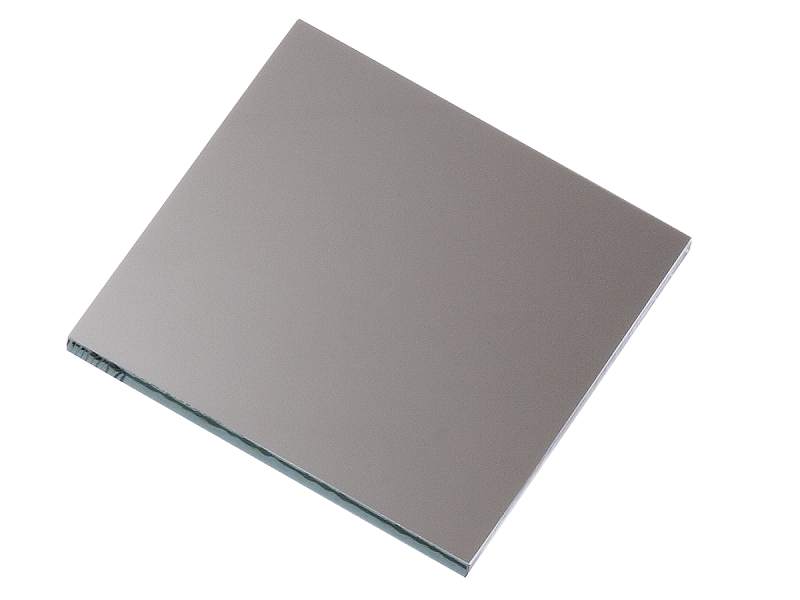

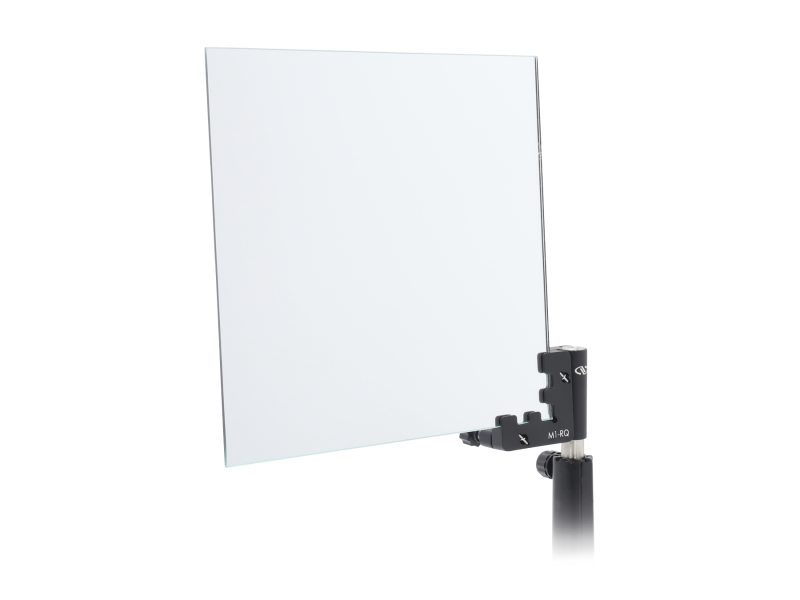

The 75K00ER.3 is aUtility Broadband Aluminum Mirror optimized for 400-10,000 nm with square dimensions of 190.5 x 190.5 mm and a 5.84 mm thickness.

These mirrors are excellent economical broadband reflectors. The front surface is coated with our ER.3 dielectric-enhanced aluminum coating. The 75K00ER.3 has an average reflectivity greater than 90% from 400-2000 nm. These mirrors can be used as a front or back surface reflector. A removable plastic sheet protects the mirror surface during shipment and handling, and can be left on if used as a back surface reflector.

Specifications

Technical Specs

Wavelength Region
Broadband
Wavelength Range
400-10000 nm
Mirror Shape
Square
Mirror Size
190.5 x 190.5 mm
Thickness
5.84 mm
Material
Float Glass
Coating Type
Enhanced Aluminum
Coating Code
ER.3
Surface Quality
60-40 scratch-dig

Surface Flatness
5λ per inch at 632.8 nm
Clear Aperture
>90% of Side Length
Back Surface
Polished
Reflectivity
R_avg>90% @ 400-2000 nm
Size Tolerance
±0.76 mm
Thickness Tolerance
±0.51 mm
Cleaning
See How to Clean Optics

Wavelength Region
Broadband
Wavelength Range
400-10000 nm
Mirror Shape
Square
Mirror Size
190.5 x 190.5 mm
Thickness
5.84 mm
Material
Float Glass
Coating Type
Enhanced Aluminum
Coating Code
ER.3
Surface Quality
60-40 scratch-dig

Surface Flatness
5λ per inch at 632.8 nm
Clear Aperture
>90% of Side Length
Back Surface
Polished
Reflectivity
R_avg>90% @ 400-2000 nm
Size Tolerance
±0.76 mm
Thickness Tolerance
±0.51 mm
Cleaning
See How to Clean Optics

Resources & Downloads

Other

75K00ER.3 RoHS Certificate(260.8 kB, PDF)
75K00ER.3_ROHS2-2021.pdf(278.8 kB, PDF)

2D Product Drawings

Square Utility Mirror Drawing(82.7 kB, PDF)
