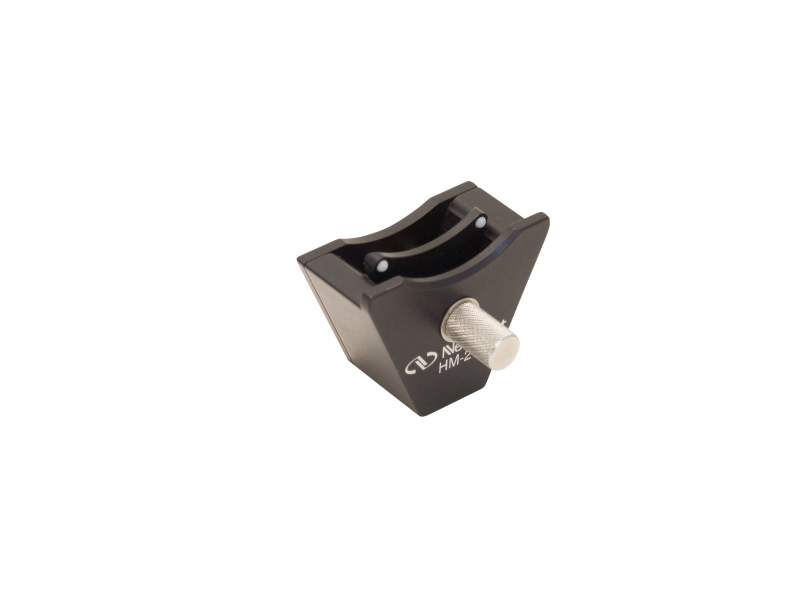

Optical Filter Mount, Edge Grip, 2.0 in. Optics, 8-32
Optical Filter Mount, Edge Grip, 2.0 in. Optics, 8-32
Model: HM-2
Product Series Overview

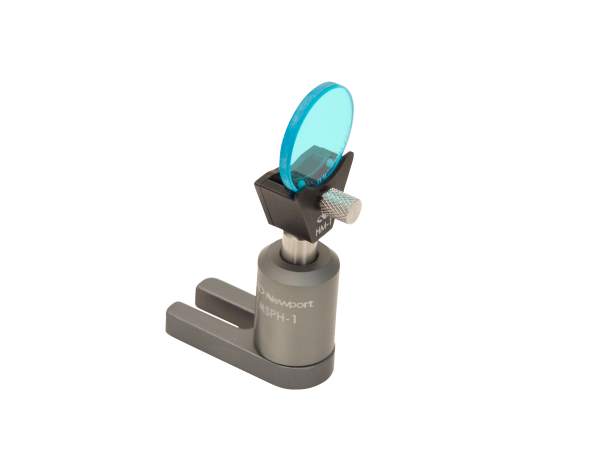

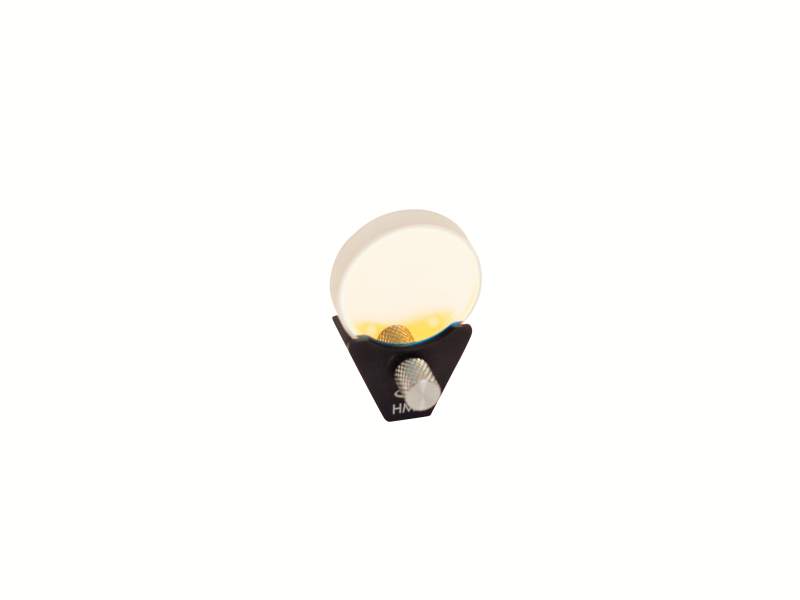

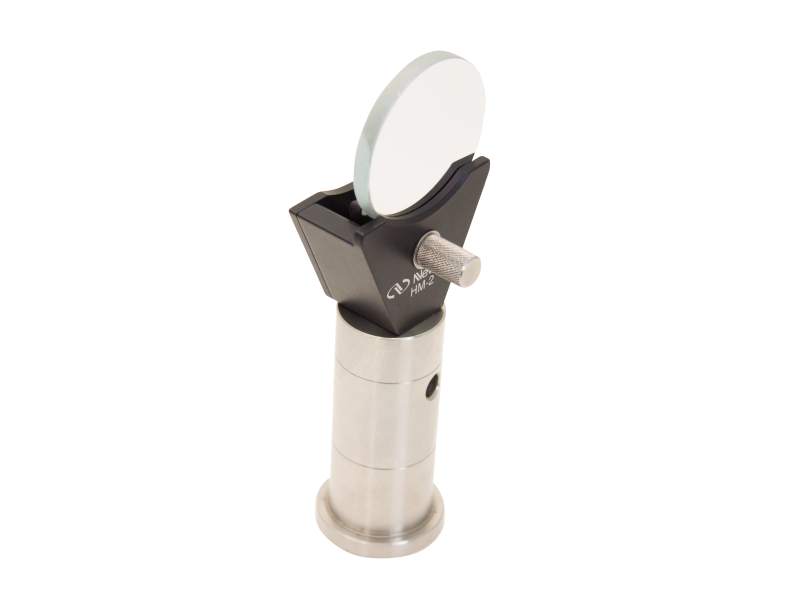

Edge Grip Thumbscrew Clamp Filter MountsThe HM-2 Optic Mount offers a convenient, economical system for mounting 2.0 in. (50.8 mm) round or square filters, beam splitters or mirrors. The mount uses the Edge Grip™ mounting mechanism to hold the optic near its edge. This holding technique allows for easy installation / removal of the optic and makes the mount noticeably smaller in size. The holder incorporates an 8-32 threaded mounting hole for post mounting on English SP and MSP Series Posts, as well as PS Series Pedestal Posts.
Resources & Downloads
2D Product Drawings
HM-2-DWG.pdf(1.2 MB, PDF)
Other
HM-2 RoHS Certificate(281.7 kB, PDF)
